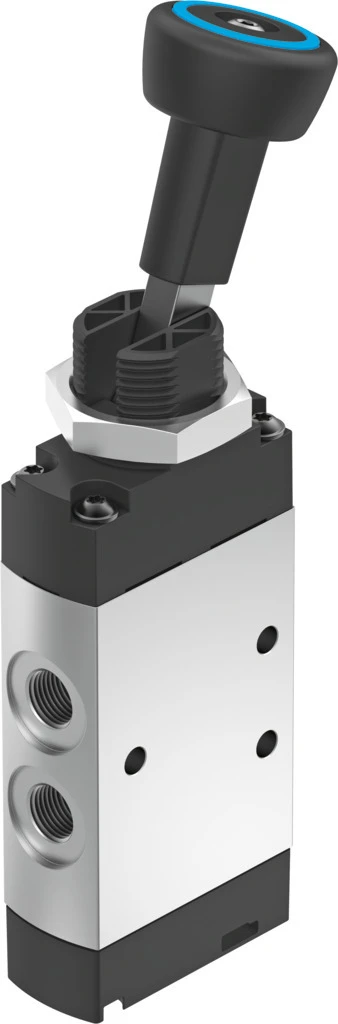

Toggle lever valve, VHEF-V-B52-G14
SKU: 5300035
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Manually actuated valve, metric VHEF, Toggle lever valve
• Valve function 5/2 double solenoid
• Type of actuation Manual
• Construction width 20 mm
• Standard nominal flow rate (standardised to DIN 1343) 1200 l/min
• Pneumatic working port G1/4
• Operating pressure -0.095 MPa ... 1 MPa
• Operating pressure -0.95 bar ... 10 bar
• Design Piston gate valve
• Nominal size 7 mm
• Exhaust-air function With flow control option
• Instructions on use Actuate manually only
• Sealing principle Soft
• Mounting position optional
Buy currently uses Select Automation shop pricing and checkout.
Manually actuated valve, metric VHEF
• Directly controlled, manually actuated valve.
• Available as hand lever, selector switch or finger lever.
• Durable thanks to tried-and-tested piston slide and disc seat valve technology
• Robust metal housing
• Attractive price
• Ergonomic and safe operation
• Minimal actuating forces
• Modern design
• Reverse operation possible
