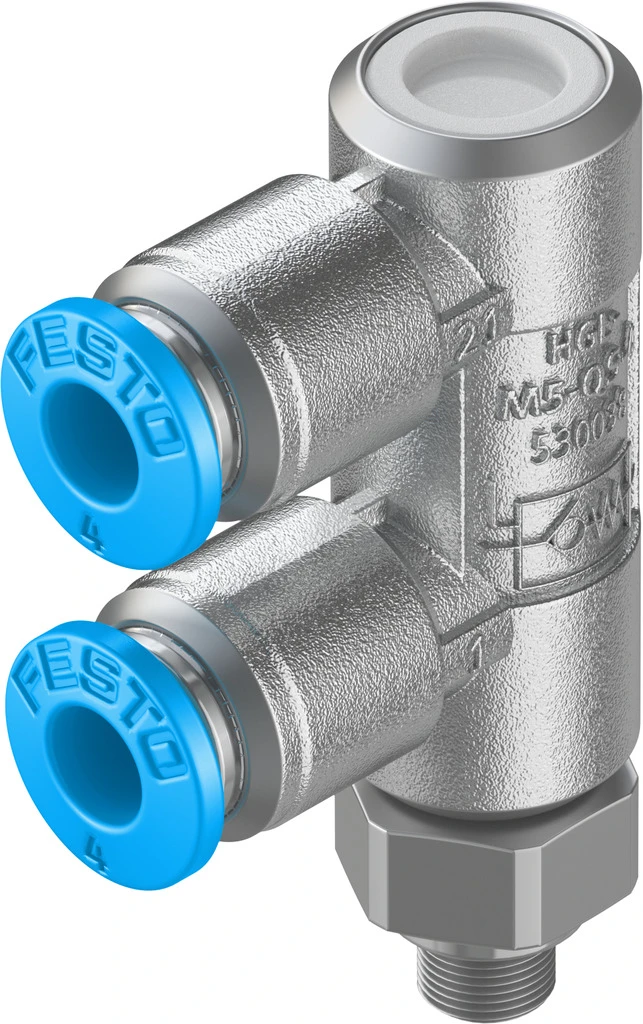

Piloted check valve, HGL-M5-QS-4
SKU: 530038
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Check valves, piloted HGL
• Valve function Piloted non-return function
• Pneumatic connection, port 1 QS-4
• Pneumatic connection, port 2 M5
• Pilot air port 21 QS-4
• Type of actuation Pneumatic
• Type of mounting Screw-in, Via male thread
• Operating pressure 0.05 MPa ... 1 MPa
• Operating pressure 0.5 bar ... 10 bar
• Pilot pressure 0.2 MPa ... 1 MPa
• Pilot pressure 2 bar ... 10 bar
• Pilot pressure 29 psi ... 145 psi
• Ambient temperature -10 °C ... 60 °C
Buy currently uses Select Automation shop pricing and checkout.
Check valves, piloted HGL
• Controlled, piloted non-return function
• Manual exhausting
• Rotatable when installed
• Push-in connector Flow rate 130 ... 1400 l/min
• Female thread Flow rate 130 ... 1600 l/min
