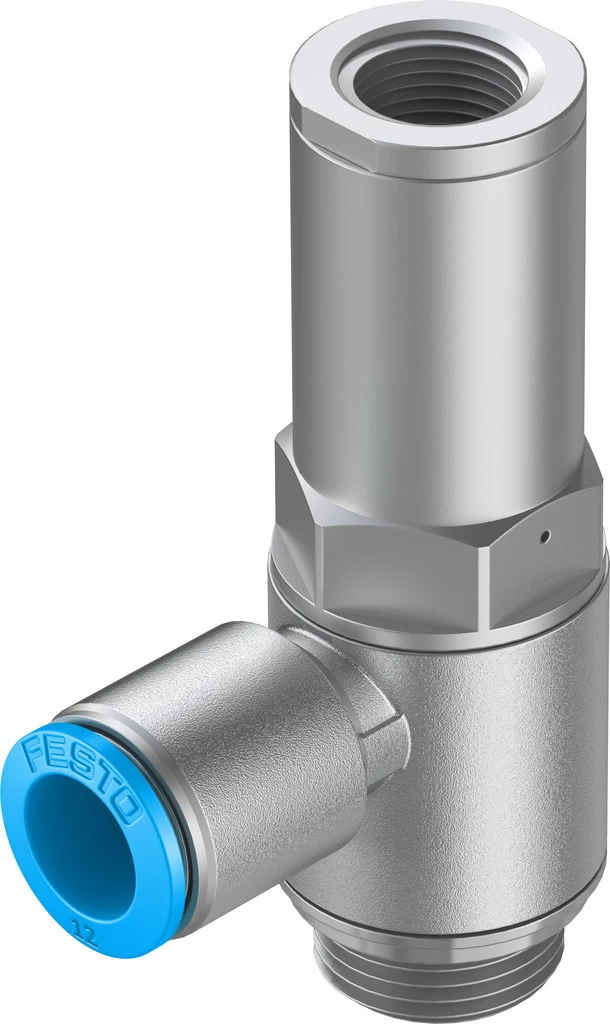

Piloted check valve, HGL-1/2-QS-12

Specifications • Check valves, piloted HGL • Valve function Piloted non-return function • Pneumatic connection, port 1 QS-12 • Pneumatic connection, port 2 G1/2 • Pilot air port 21 G3/8 • Type of actuation Pneumatic • Type of mounting Screw-in, Via male thread • Operating pressure 0.05 MPa ... 1 MPa • Operating pressure 0.5 bar ... 10 bar • Pilot pressure 0.1 MPa ... 1 MPa • Pilot pressure 1 bar ... 10 bar • Pilot pressure 14.5 psi ... 145 psi • Ambient temperature -10 °C ... 60 °C
