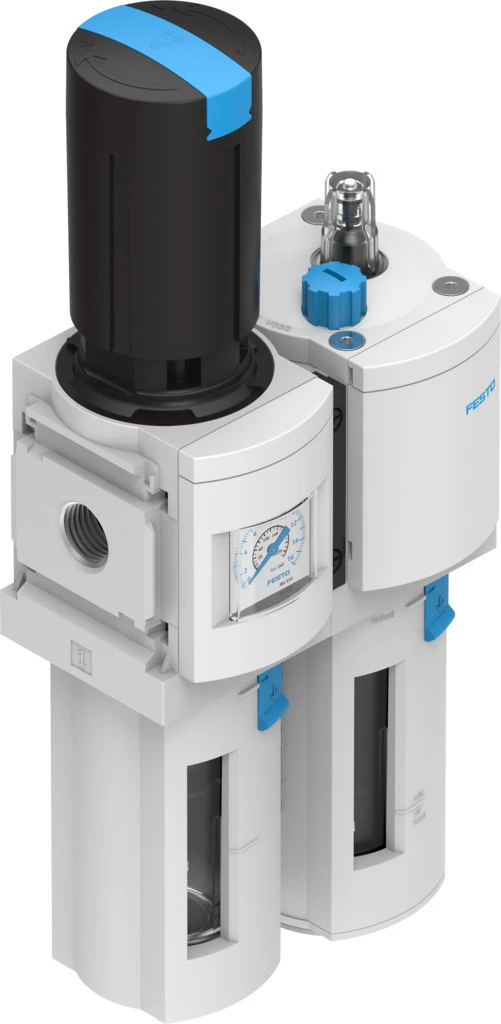

Service unit combination, MSB6-1/2-FRC1:J5M1
SKU: 530230
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Service unit combinations MSB4/MSB6-FRC
• Size 6
• Series MS
• Actuator lock Rotary knob with integrated lock
• Mounting position Vertical +/-5°
• Condensate drain Manually rotating
• Design Filter regulator with pressure gauge, Proportional standard mist lubricator
• Grade of filtration 40 µm
• Controller function Output pressure constant, Via primary pressure compensation, With secondary venting, With return flow function
• Bowl guard Plastic bowl guard
• Symbol 00991761
• Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge
• Pneumatic connection, port 1 G1/2
• Standard nominal flow rate (standardised to DIN 1343) 4800 l/min
• Pressure regulation range 0.3 bar - 7 bar
Buy currently uses Select Automation shop pricing and checkout.
Service unit combination MSB6-FRC
• With the pre-configured MS series, Festo offers a holistic concept for your compressed air preparation.
• For simple standard applications as well as for application-specific solutions with the highest quality requirements.
• Grid dimension 62 mm
• Filter, regulator and lubricator functions in a single unit
• High flow rate and highly efficient in removing contaminants
• Good control characteristics with minimal pressure hysteresis
