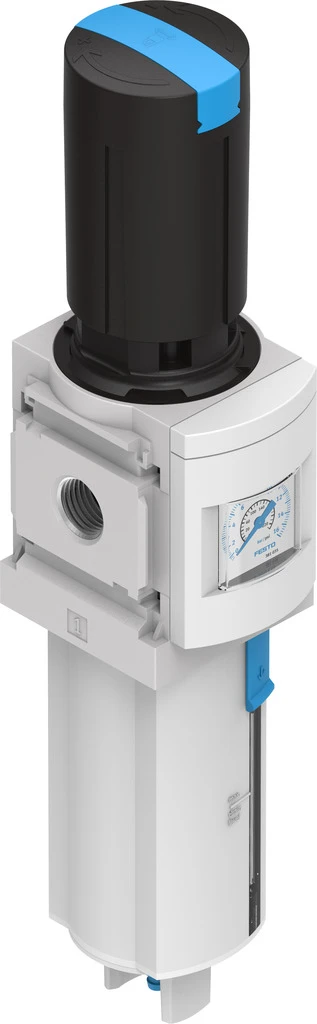

Filter regulator, MS6-LFR-1/2-D7-CUM-AS
SKU: 530338
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Filter regulators MS4/MS6-LFR, MS series
• Size 6
• Series MS
• Actuator lock Rotary knob with detent can be closed with accessories
• Mounting position Vertical +/-5°
• Grade of filtration 5 µm
• Condensate drain Manually rotating
• Design Filter regulator with pressure gauge
• Max. condensate volume 38 ml
• Controller function Output pressure constant, With secondary venting
• Bowl guard Integrated as metal bowl
Buy currently uses Select Automation shop pricing and checkout.
Filter regulators MS4/MS6-LFR, MS series
• Filter and pressure regulator in a single unit
• Good regulation characteristics with minimal hysteresis and primary pressure compensation
• Good particle and condensate separation
• Flow rate 850 ... 7200 l/min
• Operating pressure 0.8 ... 20 bar
• Grade of filtration 5 μm, 40 μm
• Manual rotary, fully automatic condensate drain
