Service unit combination, MSB4
SKU: 531029
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Service unit combination, MSB4
• Size 4
• Series MS
• Type of actuation Electric, Manual, Pneumatic
• Actuator lock Rotary knob with integrated lock
• Mounting position optional, Vertical +/-5°
• Grade of filtration 0.01 µm ... 40 µm
• Condensate drain Fully automatic, Manually rotating, Semi-automatic
• Pressure gauge (ANALOG) or Pressure display (DIGITAL) Via pressure sensor, With pressure gauge
• Operating pressure 1.5 bar ... 14 bar
• Pneumatic connection, port 1 G1/8, G1/4
• Pneumatic connection, port 2 G1/8, G1/4
• Pneumatic connection, port 3 G1/4
Buy currently uses Select Automation shop pricing and checkout.

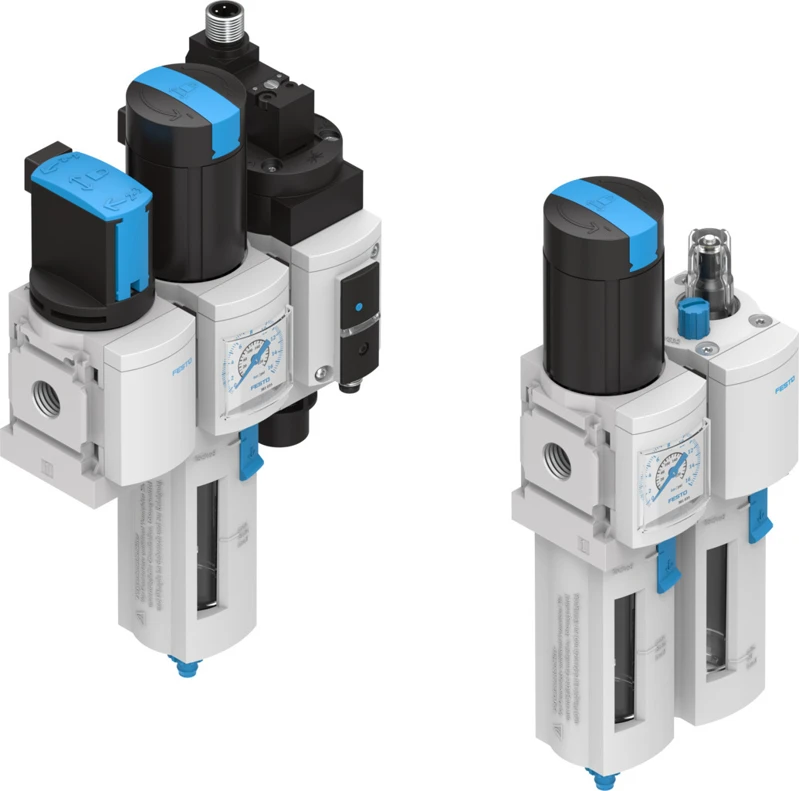

Service unit combination MSB4
• Perfect compressed air preparation!
• With its large product range, highly functional components and a wide choice of services, the MS series from Festo offers a complete concept for compressed air preparation – for both standard applications and application-specific solutions.
• Grid dimension 40mm
• Predefined or freely configurable combinations of service unit components
• Depending on the application, combination of filter regulator, filter, lubricator, on/off valve, soft-start valve, branching module
