Service unit combination, MSB6
SKU: 531030
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Service unit combination, MSB6
• Size 6
• Series MS
• Type of actuation Electric, Manual, Pneumatic
• Actuator lock Rotary knob with integrated lock
• Mounting position Vertical +/-5°
• Grade of filtration 0.01 µm ... 40 µm
• Pressure gauge (ANALOG) or Pressure display (DIGITAL) Via pressure sensor, With pressure gauge
• Operating pressure 1.5 bar ... 20 bar
• Pressure regulation range 1 bar ... 12 bar
• Standard nominal flow rate (standardised to DIN 1343) 1700 l/min ... 4800 l/min
Buy currently uses Select Automation shop pricing and checkout.

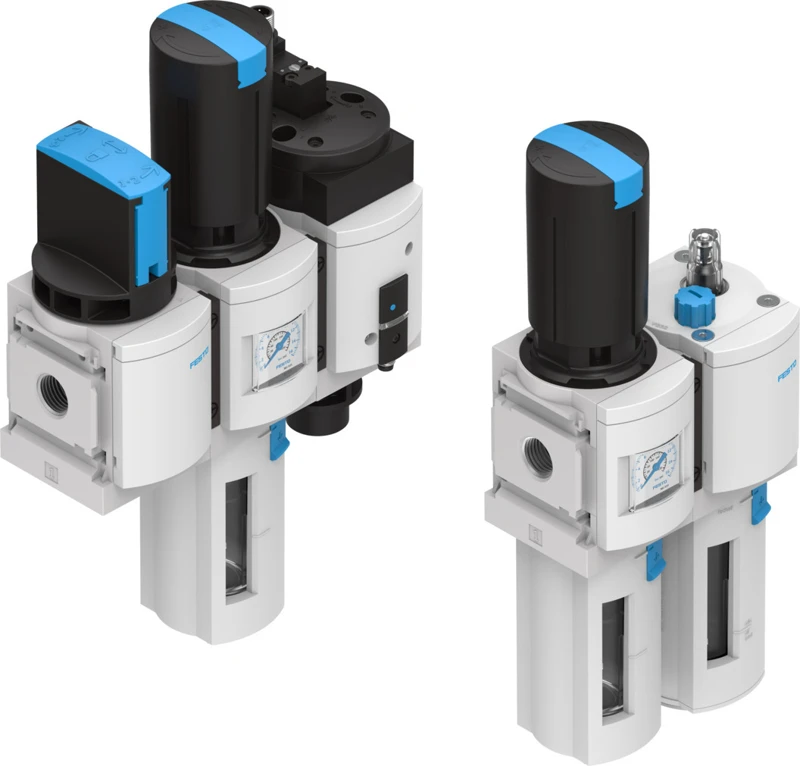

Service unit combination MSB6
• With the pre-configured MS series, Festo offers a holistic concept for your compressed air preparation.
• For simple standard applications as well as for application-specific solutions with the highest quality requirements.
• Grid dimension 62 mm
• Predefined or freely configurable combinations of service unit components
• Depending on the application, combination of filter regulator, filter, lubricator, on/off valve, soft-start valve, branching module
