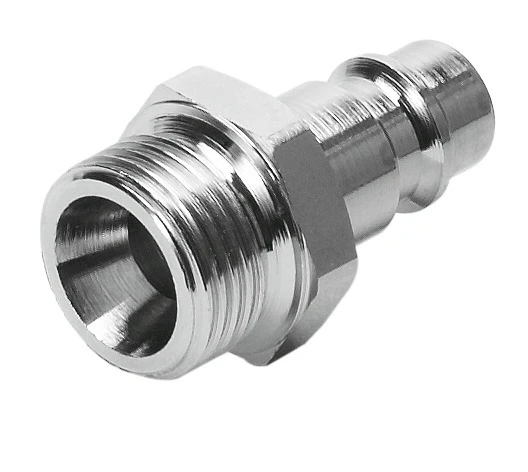

Quick coupling plug, KS4-1/2-A
SKU: 531676
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pressure booster DPA
• Accessories, Quick coupling plug KS4, With male thread
• Nominal size 7.85 mm
• Operating pressure complete temperature range -0.095 MPa ... 1.2 MPa
• Operating pressure complete temperature range -0.95 bar ... 12 bar
• Operating pressure complete temperature range -13.775 psi ... 174 psi
• Standard nominal flow rate (standardised to DIN 1343) 756 l/min ... 1323 l/min
• Nominal flow rate standardised according to ISO 8778 819.5 l/min ... 1434.1 l/min
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot medium Lubricated operation possible
• Corrosion resistance class CRC 1 - Low corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Ambient temperature -10 °C ... 60 °C
• Pneumatic connection, port 1 Male thread G1/2
Buy currently uses Select Automation shop pricing and checkout.
Coupling socket, quick Coupling socket KD/Coupling plug KS
• Coupling to ISO 4414, with shut-off on one side or both sides.
• Quick connection coupling for standard applications without safety function
• Shut-off at one or both ends
• With male or female thread or with barbed fitting or quick connector
• Nickel-plated brass, PP
• Operating medium: compressed air, vacuum
