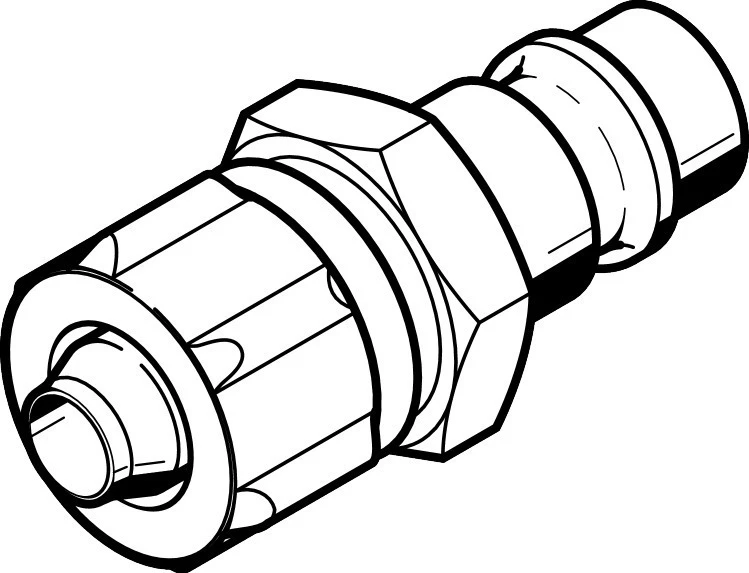

Quick coupling plug, KS4-CK-9

Specifications • Quick coupling socket KD, quick coupling plug KS • Nominal size 7.4 mm • Operating pressure complete temperature range -0.095 MPa ... 1.2 MPa • Operating pressure complete temperature range -0.95 bar ... 12 bar • Operating pressure complete temperature range -13.775 psi ... 174 psi • Standard nominal flow rate (standardised to DIN 1343) 725 l/min ... 1197 l/min • Nominal flow rate standardised according to ISO 8778 785.9 l/min ... 1297.5 l/min • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Note on operating and pilot medium Lubricated operation possible • Corrosion resistance class CRC 1 - Low corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Ambient temperature -10 °C ... 60 °C • Product weight 26 g • Pneumatic connection, port 1 For barbed fitting inside diameter of 9 mm with union nut
