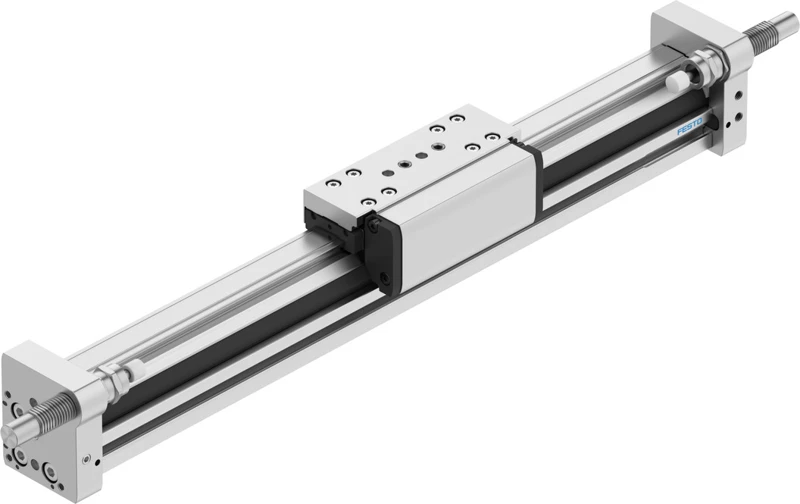

Linear drive, DGC-18- -

Specifications • Linear drive DGC • Stroke 1 mm ... 3000 mm • Piston diameter 18 mm • Cushioning Elastic cushioning rings/plates at both ends, Pneumatic cushioning, adjustable at both ends, Shock absorber, hard characteristic curve, Shock absorber, soft characteristic curve • Mounting position optional • Guide Plain-bearing guide, Basic guide, Recirculating ball bearing guide • Position detection Via proximity switch • Variants Protected recirculating ball bearing guide, Additional slide, standard, on left, Additional slide, standard, on right • Operating pressure 0.2 MPa ... 0.8 MPa • Operating pressure 2 bar ... 8 bar • Mode of operation Double-acting
