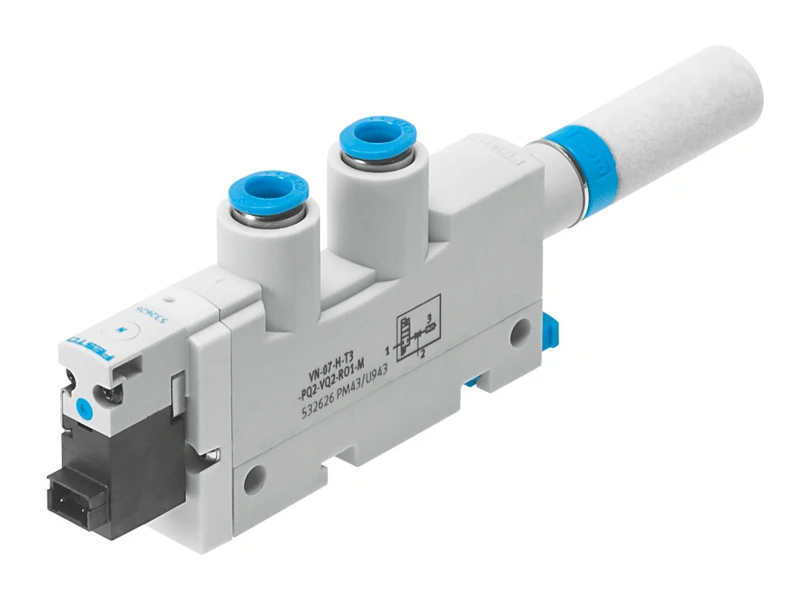

Vacuum generator, VN-05-H-T3-PQ2-VQ2-RO1-M

Specifications • Vacuum generators VN-A/M/B, with additional functions • Nominal size, Laval nozzle 0.45 mm • Grid dimension 14 mm • Silencer design Open • Mounting position optional • Ejector characteristic Standard, High negative pressure • Manual override Non-detenting • Integrated function Electric on-off valve, Open silencer • Design T-shape • Symbol 00991492 • Valve function 2/2 • Operating pressure for max. suction flow rate 3 bar • Operating pressure 2 bar ... 8 bar • Operating pressure for max. vacuum 4.9 bar • Max. vacuum 92 % • Nominal operating pressure 6 bar • Max. suction flow rate against atmosphere 7.2 l/min
