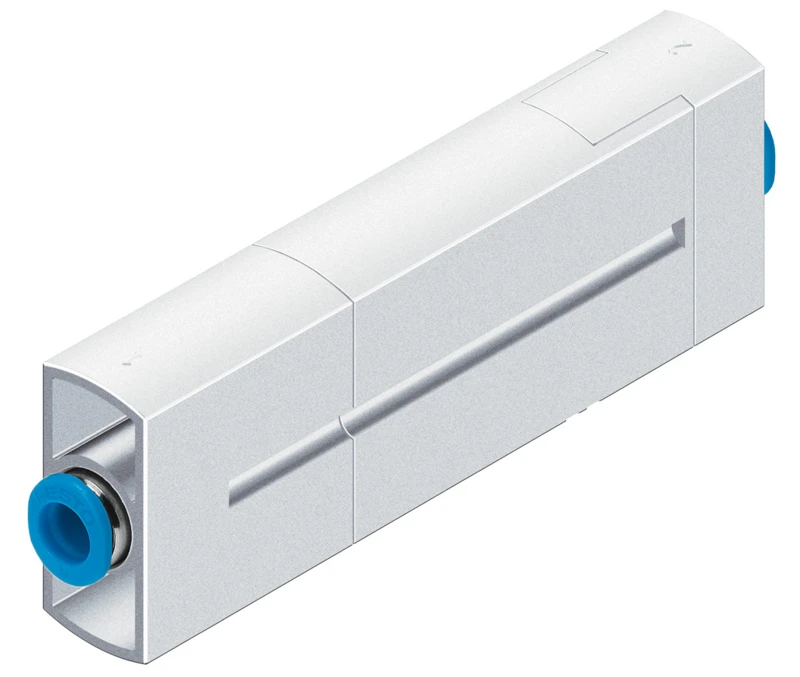

Vacuum generator, VN-05-N-I3-PQ2-VQ2-A
SKU: 532625
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Vacuum generators VN-A/M/B, with additional functions
• Nominal size, Laval nozzle 0.45 mm
• Grid dimension 14.5 mm
• Mounting position optional
• Ejector characteristic Inline, High suction volume
• Integrated function Ejector pulse valve, pneumatic
• Design Straight shape
• Symbol 00991484
• Operating pressure for max. suction flow rate 5 bar
• Operating pressure 1 bar ... 8 bar
• Nominal operating pressure 6 bar
• Max. suction flow rate against atmosphere 13.3 l/min
Buy currently uses Select Automation shop pricing and checkout.
Vacuum generator, electropneumatic VN
• Can be used directly in the work space
• Low cost
• Maintenance-free operation and reduced noise level through an integrated, open silencer
• With solenoid valve vacuum on/off
