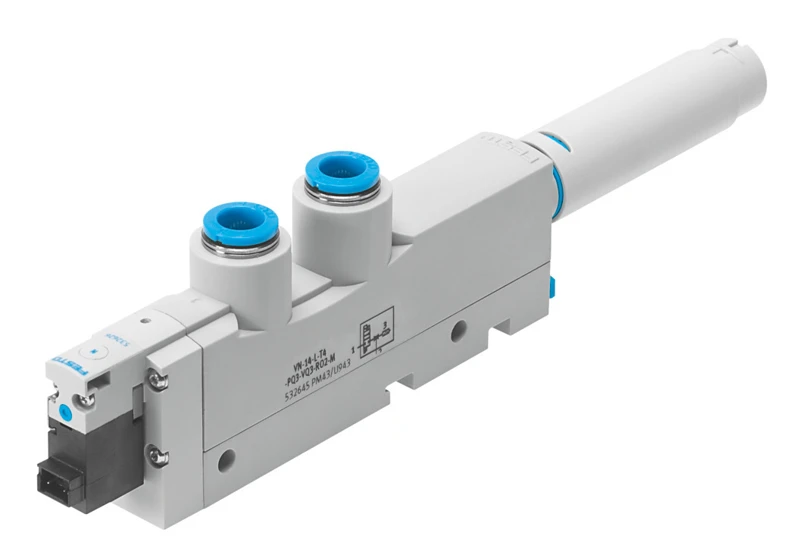

Vacuum generator, VN-14-L-T4-PQ3-VQ3-RO2-M
SKU: 532645
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Vacuum generators VN-A/M/B, with additional functions
• Nominal size, Laval nozzle 1.4 mm
• Grid dimension 18 mm
• Silencer design Open
• Mounting position optional
• Ejector characteristic Standard, High suction volume
• Manual override Non-detenting
• Integrated function Electric on-off valve, Open silencer
• Design T-shape
• Symbol 00991492
• Valve function 2/2
• Operating pressure for max. suction flow rate 5 bar
• Operating pressure 2 bar ... 8 bar
• Nominal operating pressure 6 bar
• Max. suction flow rate against atmosphere 92.6 l/min
Buy currently uses Select Automation shop pricing and checkout.
Vacuum generator, electropneumatic VN
• Can be used directly in the work space
• Low cost
• Maintenance-free operation and reduced noise level through an integrated, open silencer
• With solenoid valve vacuum on/off
