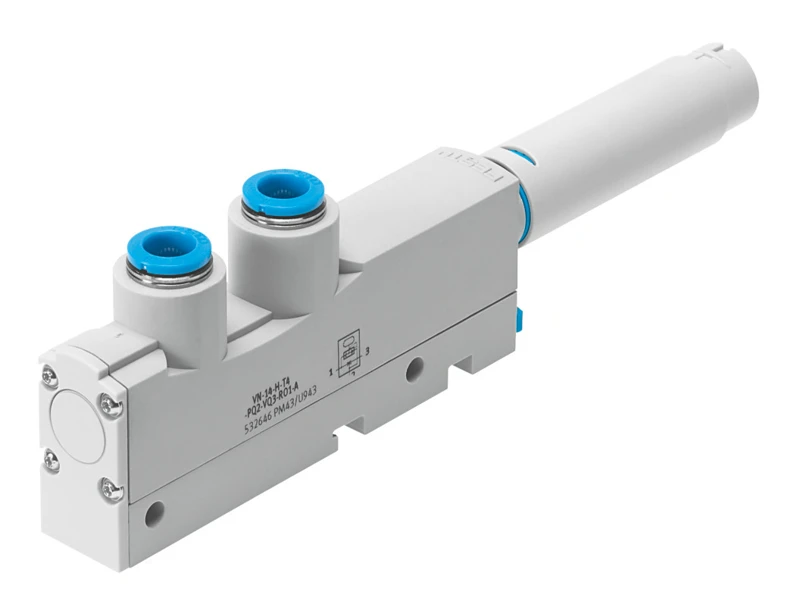

Vacuum generator, VN-14-H-T4-PQ3-VQ3-RO2-A
SKU: 532646
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Vacuum generators VN-A/M/B, with additional functions
• Nominal size, Laval nozzle 1.4 mm
• Grid dimension 18 mm
• Silencer design Open
• Mounting position optional
• Ejector characteristic Standard, High negative pressure
• Integrated function Ejector pulse valve, pneumatic, Open silencer
• Design T-shape
• Symbol 00992043
• Operating pressure for max. suction flow rate 4 bar
• Operating pressure 1 bar ... 8 bar
• Operating pressure for max. vacuum 3.5 bar
• Max. vacuum 92 %
• Nominal operating pressure 6 bar
• Max. suction flow rate against atmosphere 48.8 l/min
Buy currently uses Select Automation shop pricing and checkout.
Vacuum generator, electropneumatic VN
• Can be used directly in the work space
• Low cost
• Maintenance-free operation and reduced noise level through an integrated, open silencer
• With solenoid valve vacuum on/off
