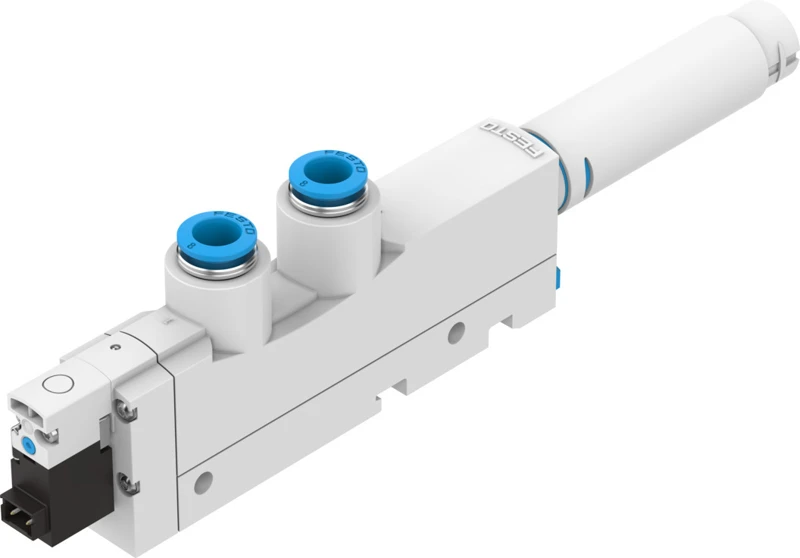

Vacuum generator, VN-14-L-T4-PQ3-VQ3-RO2-B

Specifications • Vacuum generators VN-A/M/B, with additional functions • Nominal size, Laval nozzle 1.4 mm • Grid dimension 18 mm • Silencer design Open • Mounting position optional • Ejector characteristic Standard, High suction volume • Manual override Non-detenting • Integrated function Ejector pulse valve, pneumatic, Electric on-off valve, Open silencer • Design T-shape • Symbol 00991944 • Valve function 2/2 • Operating pressure for max. suction flow rate 5 bar • Operating pressure 2 bar ... 8 bar • Nominal operating pressure 6 bar • Max. suction flow rate against atmosphere 92.6 l/min
