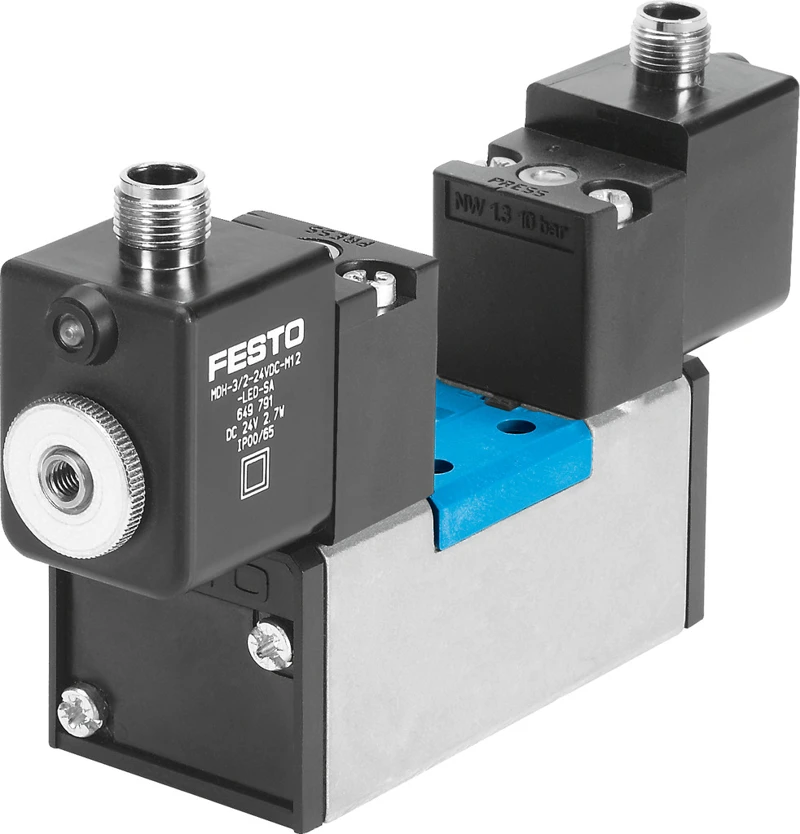

Solenoid valve, JMDH-5/2-D-1-M12-C

Specifications • Standards-based valves to ISO 5599-1, individual plug M12x1 • Valve function 5/2 double solenoid • Type of actuation Electric • Construction width 42 mm • Standard nominal flow rate (standardised to DIN 1343) 1200 l/min • Pneumatic working port Sub-base size 1 to ISO 5599-1, G1/4 • Operating voltage 24V DC • Operating pressure 2 bar ... 10 bar • Design Piston gate valve • Degree of protection IP65
