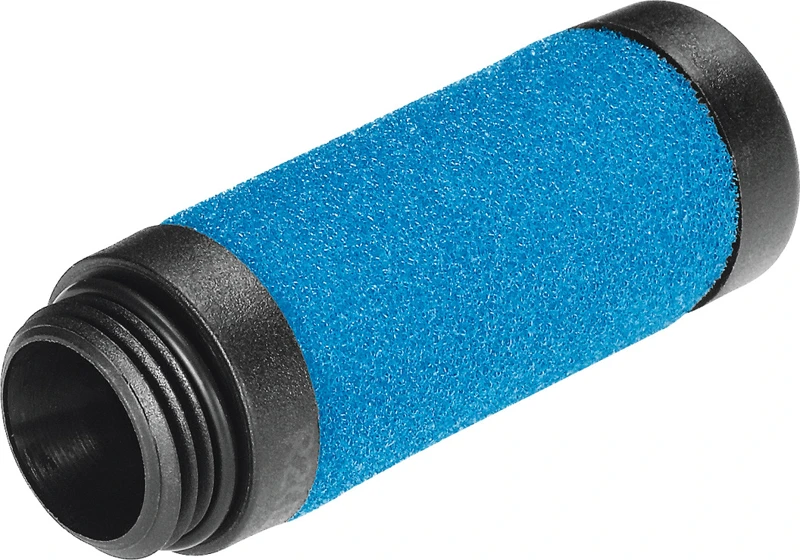

Micro-filter cartridge, MS6-LFM-A

Specifications • Micro-filter cartridge • Size 6 • Based on standard ISO 12500-1, ISO 12500-3 • Series MS • Grade of filtration 0.01 µm • Max. standard flow rate for clean air class 900 l/min • Min. standard flow rate for clean air class 135 l/min • Operating medium Compressed air to ISO 8573-1:2010 [6:-:4], Inert gases • LABS (PWIS) conformity VDMA24364-B1/B2-L • Air purity class at output Compressed air to ISO 8573-1:2010 [3:-:2] • Fractional filtration efficiency (0,1 - 0,5 µm) 99.995 % • MPPS 0.05 µm • Filter efficiency MPPS 99.95 % • Residual oil content 0.01 mg/m³
