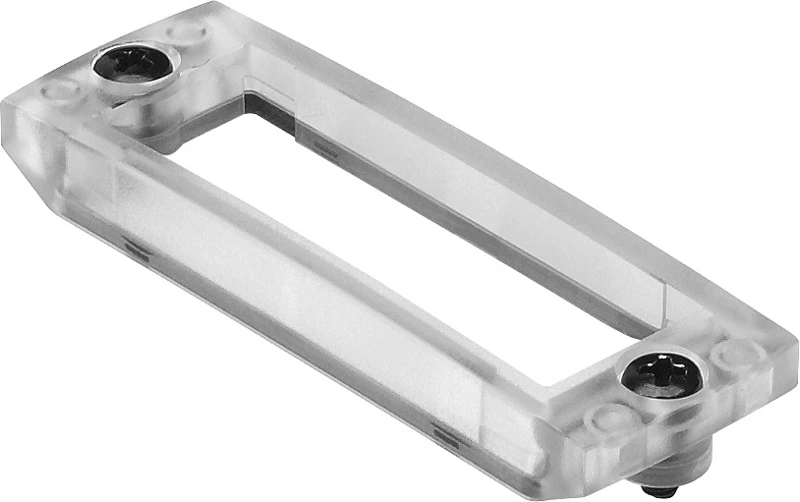

Inspection cover, AK-SUB-9/15-B
SKU: 533334
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Modular electrical terminal CPX
• Accessories, Inspection cover
• Product weight 20 g
• Degree of protection IP65, IP67, In assembled state To IEC 60529
• Ambient temperature -5 °C ... 50 °C
• LABS (PWIS) conformity VDMA24364-B2-L
• Corrosion resistance class CRC 1 - Low corrosion stress
• Material screws Steel Galvanised
• Material seals NBR
• Material cover PA
• Relative air humidity Non-condensing
Buy currently uses Select Automation shop pricing and checkout.
Modular electrical terminal CPX
• Choice of several valve terminals for different applications: MPA-S, MPA-L, VTSA/VTSA-F/VTSA-F-CB
• Economical from the smallest configuration up to the maximum number of modules
• Up to 9 electrical input/output modules plus bus node and pneumatic interface/electronics modules for valves
• Extensive range of functions and connection options for the electrical modules
• Choice of connection technology for technically and economically optimised connections
• Can be used as a dedicated remote I/O module
