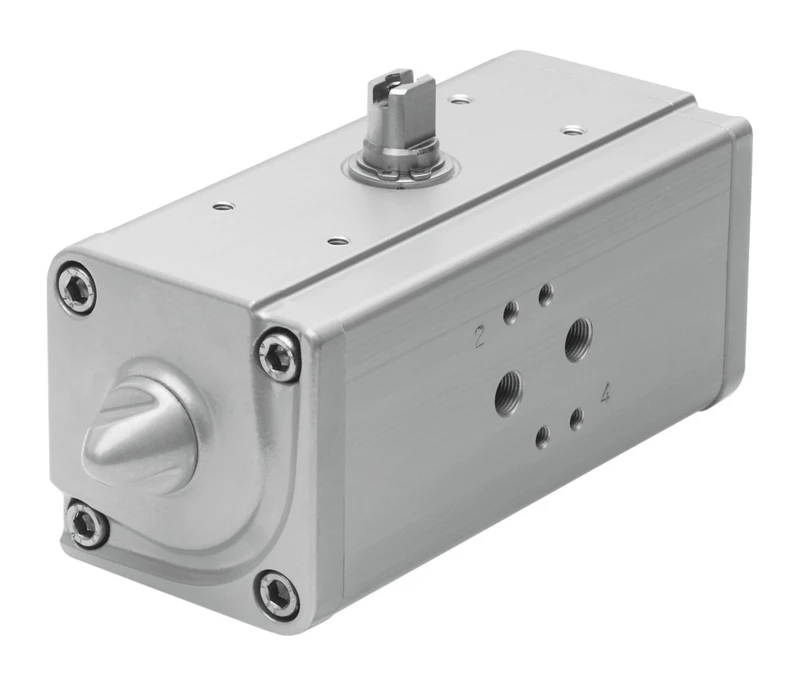

Semi-rotary drive, DAPS-0480-090-R-F1012

Specifications • Quarter turn actuators DAPS, double-acting • Pneumatic connection G1/4 • Torque at nominal operating pressure and 0° swivel angle 480 Nm • Shaft connection T27 • Size of valve actuator 0480 • Flange hole pattern F10, F12 • Swivel angle 90 deg • End-position adjustment range at 0° -1 deg ... 9 deg • Shaft connection depth 29.5 mm • Fitting connection conforms to standard ISO 5211 • Cushioning No cushioning • Mounting position optional • Mode of operation Double-acting • Design Scotch yoke system • Position detection Without
