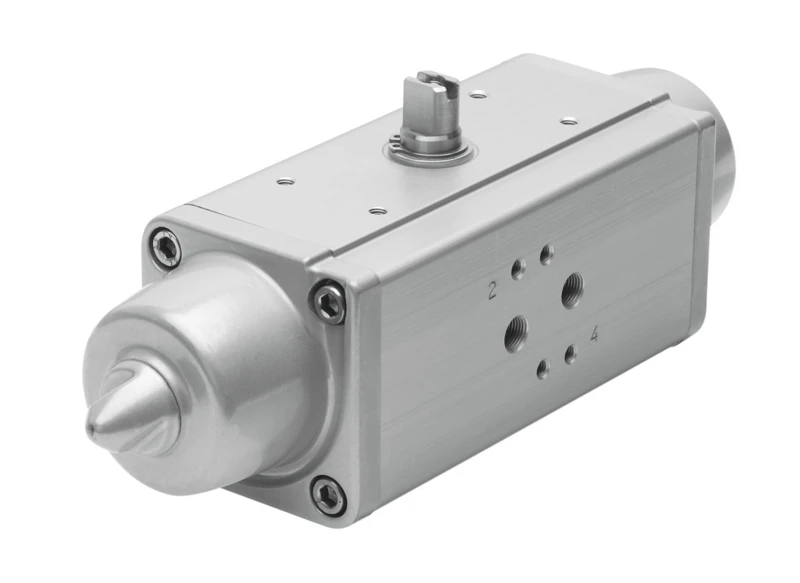

Semi-rotary drive, DAPS-0090-090-RS1-F0710
SKU: 533439
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Quarter turn actuators DAPS, single-acting
• Pneumatic connection G1/8
• Shaft connection T22
• Size of valve actuator 0090
• Flange hole pattern F07, F10
• Swivel angle 90 deg
• End-position adjustment range at 0° -1 deg ... 9 deg
• End-position adjustment range at nominal swivel angle 81 deg ... 91 deg
• Shaft connection depth 24.8 mm
• Note on end-position adjusting range One end position optionally adjustable
• Fitting connection conforms to standard ISO 5211
• Cushioning No cushioning
• Mounting position optional
• Mode of operation Single-acting
• Design Scotch yoke system
• Position detection Without
Buy currently uses Select Automation shop pricing and checkout.
Quarter turn actuator DAPS
• The compact and sturdy quarter turn actuator DAPS with lever kinematics is specially designed for the requirements of the process industry.
• High breakaway torques
• Flange hole pattern to ISO 5211
• Mounting hole pattern to VDI/VDE 3845
• Optionally with handwheel as a manual emergency override
• Corrosion-resistant version made from stainless steel
• To EU Explosion Protection Directive (ATEX)
• With safety functions
