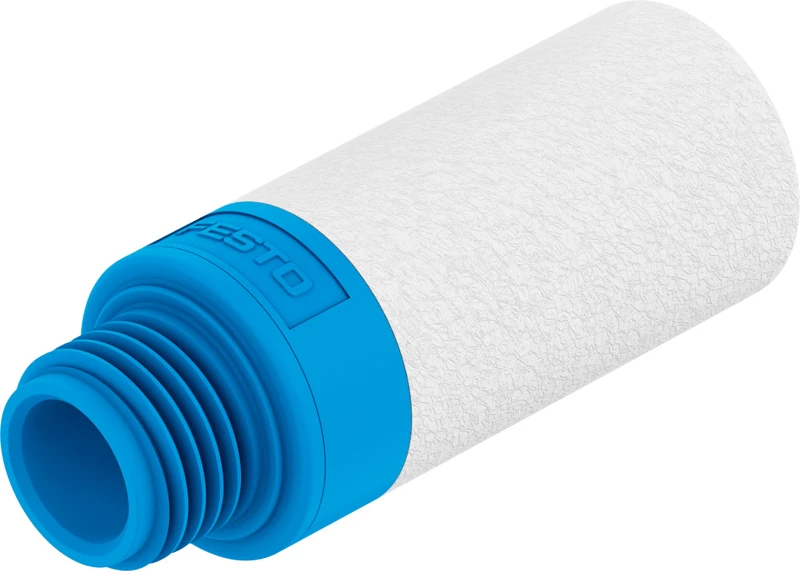

Silencer, UC-1/8-50
SKU: 534219
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Silencer UC
• Mounting position optional
• Size of pack 50
• Symbol 00991473
• Operating pressure 0 MPa ... 1 MPa
• Operating pressure 0 bar ... 10 bar
• Flow rate to atmosphere 1700 l/min
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot medium Lubricated operation possible
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Sound pressure level 59 dB(A)
• Ambient temperature -10 °C ... 70 °C
• Product weight 2.6 g
• Pneumatic connection G1/8
Buy currently uses Select Automation shop pricing and checkout.
Silencer UC
• Types of silencers for compact solenoid valves CPE, Compact Performance and for push-in fitting QS, Quick Star.
• For noise reduction and prevention of contamination at exhaust ports of pneumatic components
• Polymer version
• Operating medium compressed air
• For solenoid valves CPE
• Threaded connection or push-in sleeve for push-in fitting QS
