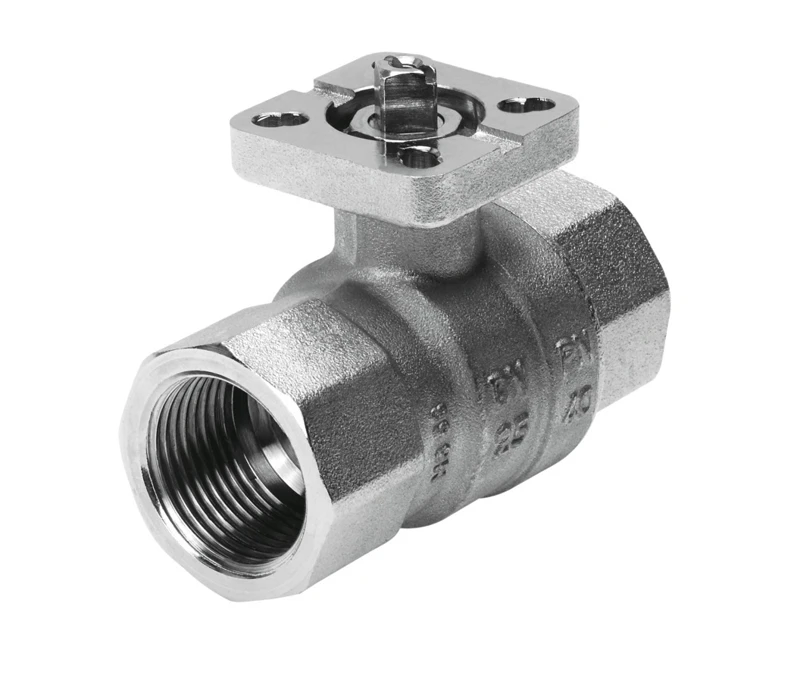

Ball valve, VAPB-1-F-40-F0304
SKU: 534306
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Ball valves VAPB, 2-way
• Design 2-way ball valve
• Type of actuation Mechanical
• Sealing principle Soft
• Mounting position optional
• Type of mounting In-line installation
• Connection Process valve Rp1
• Switching position indicator Slot direction = flow direction
• Flange hole pattern F03, F04
• Nominal size DN 25
• Flow direction Reversible
• Flow rate Kv 70 m³/h
Buy currently uses Select Automation shop pricing and checkout.
Ball valve VAPB
• The ball valve series VAPB offers high-quality ball valve solutions with full flow for use in industrial applications.
• Available in brass (-MS) or stainless steel (-CR) for increased corrosion resistance.
• Automatable 2-way ball valve
• Brass design
• Blow-out proof shaft
• Manual operation possible using hand lever
• Connecting thread to EN 10226-1
• Mounting flange to ISO 5211
