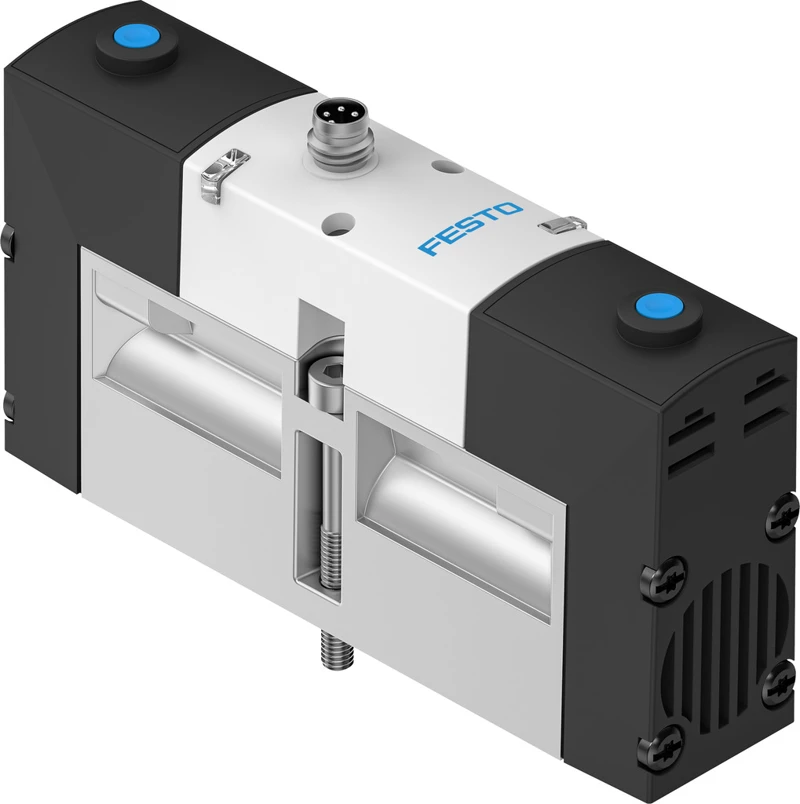

Solenoid valve, VSVA-B-T32H-AH-A1-1R2L
SKU: 534534
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves VSVA, with central plug M8x1, M12x1
• Valve function 2x3/2-way, open/closed, monostable
• Type of actuation Electric
• Construction width 26 mm
• Standard nominal flow rate (standardised to DIN 1343) 900 l/min
• Pneumatic working port Sub-base size 26 mm to ISO 15407-1
• Operating voltage 24V DC
• Operating pressure 0.3 MPa ... 0.8 MPa
• Operating pressure 3 bar ... 8 bar
• Design Piston gate valve
• Type of reset Pneumatic spring
Buy currently uses Select Automation shop pricing and checkout.
Standards-based valve with central plug VSVA
• Standards-based valves ISO 15407-1 with central plug.
• Conforms to ISO 5599-1
• Electrical connection with central plug
• Robust metal housing
• Manifold assembly with mixed sizes possible
