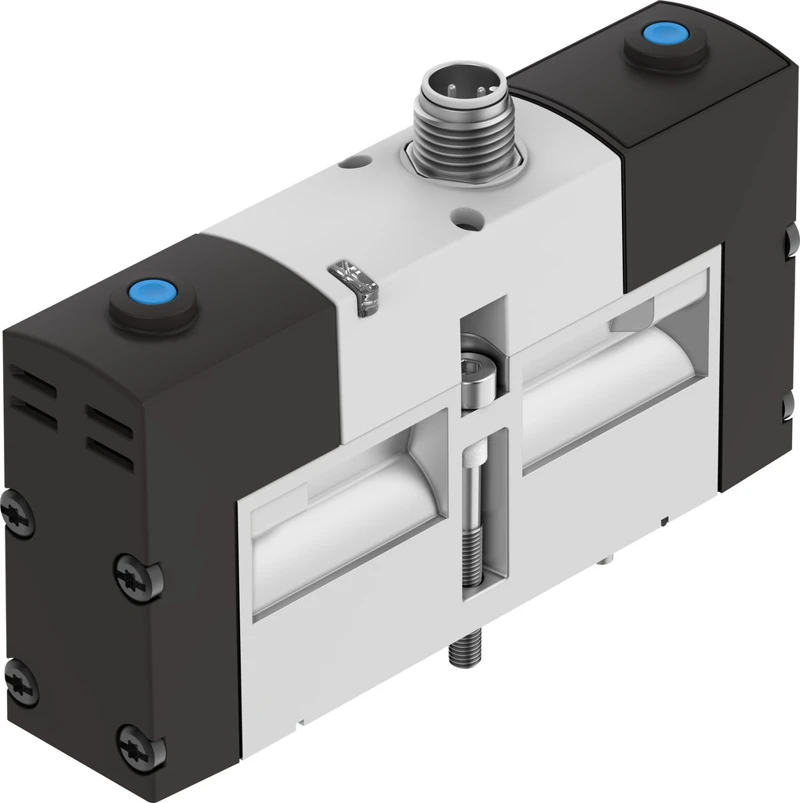

Solenoid valve, VSVA-B-P53E-H-A1-1R5L
SKU: 534560
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valve VSVA, to ISO 15407-1
• Valve function 5/3 exhausted
• Type of actuation Electric
• Construction width 26 mm
• Standard nominal flow rate 1000 l/min
• Pneumatic working port Sub-base size 26 mm to ISO 15407-1
• Operating voltage 24V DC
• Operating pressure 0.3 MPa ... 0.8 MPa
• Operating pressure 3 bar ... 8 bar
• Design Piston gate valve
• Type of reset Mechanical spring
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve VSVA, to ISO 15407-1
• High-performance valves in a sturdy metal housing
• Width of standards-based valve 18/26 mm, flow rates up to 1400 l/min
• Manifold assembly with mixture of sizes possible
• Electrical connection via round or square plug socket
• Complete and standardised valve range
• Wide range of vertical stacking modules: pressure regulator, flow control valve, vertical pressure shut-off plate, etc
