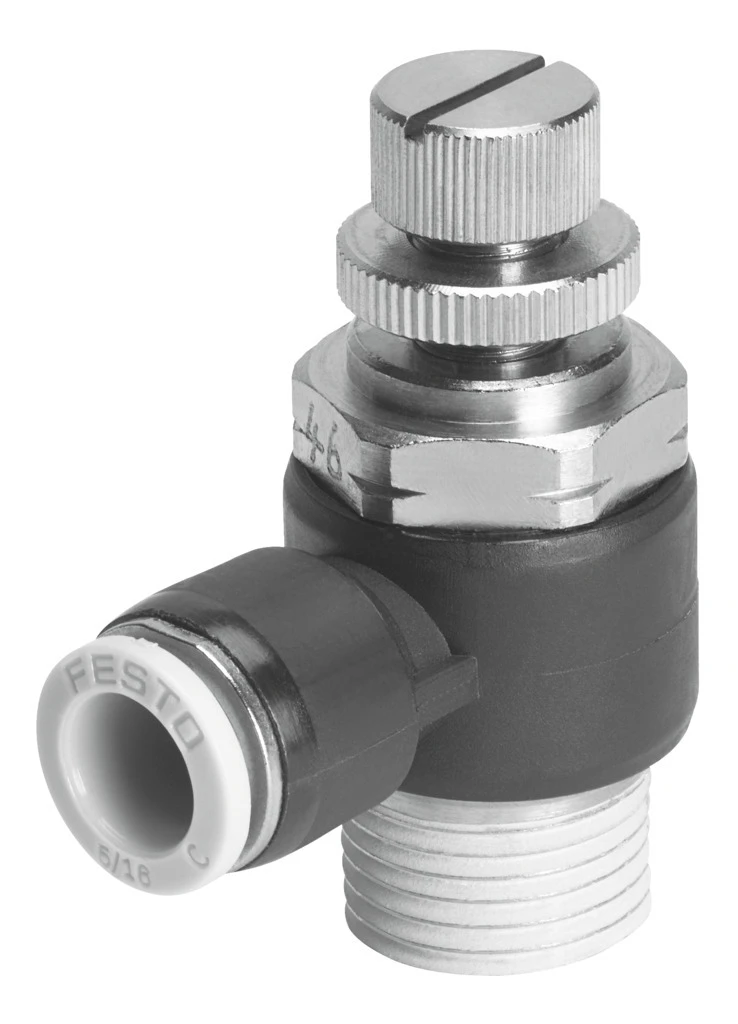

One-way flow control valve, GRLA-1/8-QB-5/16-U
SKU: 534659
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• One-way flow control valve
• Valve function Exhaust air flow control non-return function
• Pneumatic connection 1 QB-5/16
• Pneumatic connection 2 1/8 NPT
• Actuation type Manual
• Adjusting element Slotted screw
• Type of mounting Screw-in, With external thread
• Standard nominal flow rate in flow control direction 1063.98 l/min
• Standard nominal flow rate in non-return direction 817.373 l/min ... 1086.864 l/min
• Ambient temperature 0 °C ... 60 °C
• Mounting position Any
• Symbol 00991452
• Operating pressure for entire temperature range -0.951 bar ... 7.998 bar
Buy currently uses Select Automation shop pricing and checkout.
One-way flow control valve GRxA-NPT, GRxZ-NPT
• Tried and tested for precise adjustment of the flow rate.
• Lightweight, compact and robust thanks to the combination of polymer and metal.
• Flow control valve, throttling at one end
• Polymer design
• For direct or inline mounting with different flow ranges
• Connections: push-in connector at both ends, thread/push-in connector
