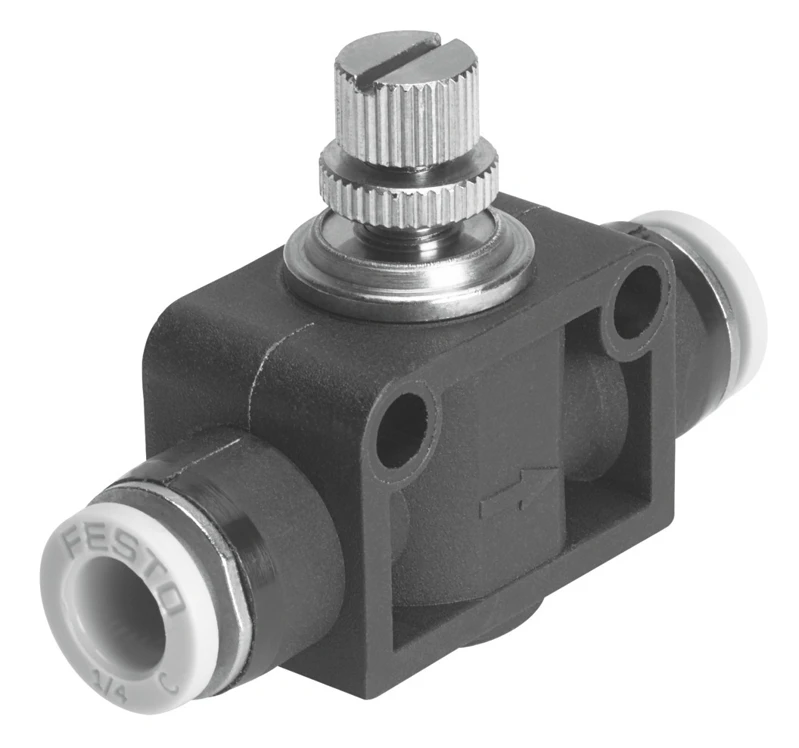

One-way flow control valve, GR-QB-3/8-U

Specifications • One-way flow control valve, in-line installation GR • Valve function Flow control non-return function • Pneumatic connection 1 QB-3/8 • Pneumatic connection 2 QB-3/8 • Actuation type Manual • Adjusting element Slotted screw • Type of mounting Optionally: Line installation, With through-hole • Standard nominal flow rate in flow control direction 1449.15 l/min • Standard nominal flow rate in non-return direction 1029.661 l/min ... 1487.288 l/min • Operating pressure -0.951 bar ... 7.998 bar • Ambient temperature 0 °C ... 60 °C • Housing material PBT-reinforced
