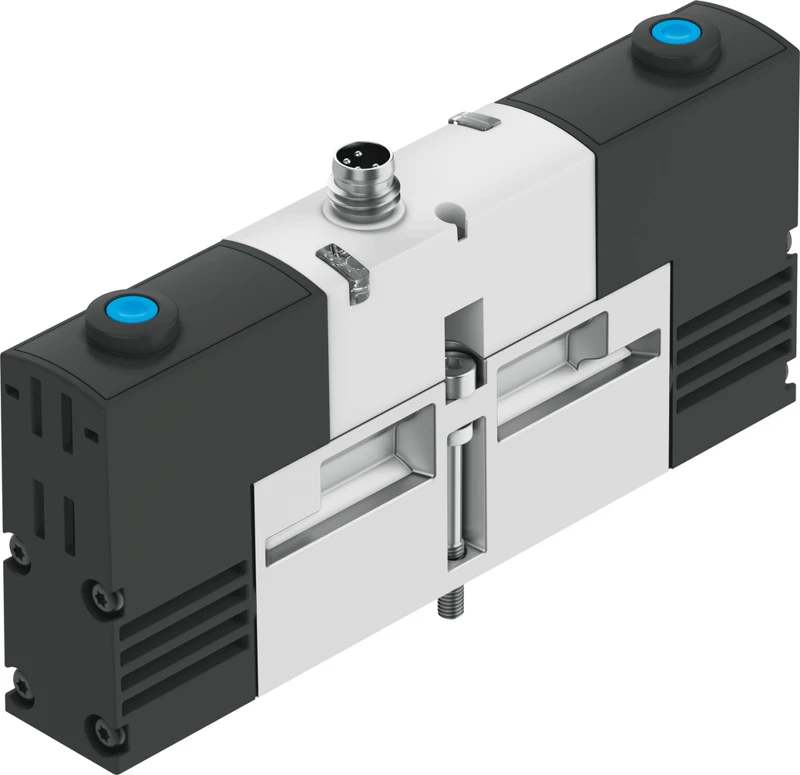

Solenoid valve, VSVA-B-D52-ZH-A2-1R2L

Specifications • Solenoid valves VSVA, with central plug M8x1, M12x1 • Valve function 5/2-way, bistable, dominant • Type of actuation Electric • Construction width 18 mm • Standard nominal flow rate (standardised to DIN 1343) 550 l/min • Pneumatic working port Sub-base size 18 mm to ISO 15407-1, Sub-base size 02 to VDMA 24563 • Operating voltage 24V DC • Operating pressure -0.09 MPa ... 1 MPa • Operating pressure -0.9 bar ... 10 bar • Design Piston gate valve • Approval C-Tick, c UL us - Recognized (OL)
