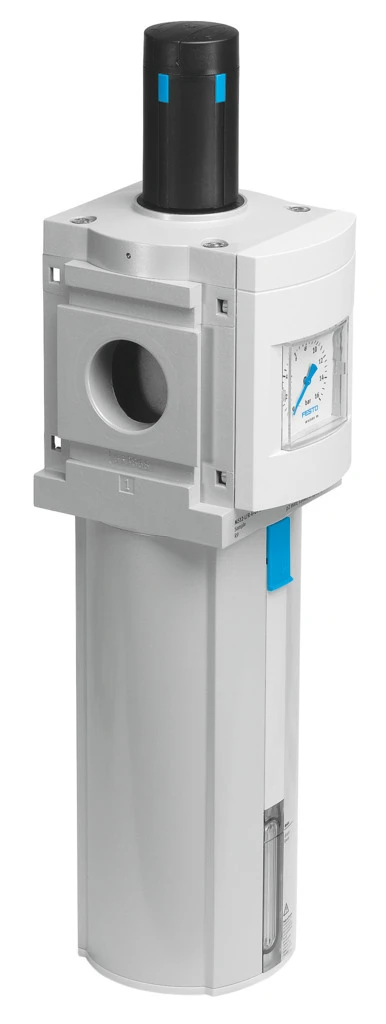

Filter regulator, MS12-LFR
SKU: 535022
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Filter regulators MS12-LFR, MS series
• Size 12
• Series MS
• Actuator lock Rotary knob with detent, Rotary knob with integrated lock can be closed with accessories
• Mounting position Vertical +/-5°
• Design Filter regulator with pressure gauge
• Degree of condensate separation >75 %
• Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge
• Max. pressure hysteresis 0.4 bar
• Operating medium Compressed air to ISO 8573-1:2010 [-:4:-], Compressed air to ISO 8573-1:2010 [7:4:-], Inert gases
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Storage temperature -10 °C ... 60 °C
• Air purity class at output Compressed air to ISO 8573-1:2010 [6:4:4], Compressed air to ISO 8573-1:2010 [7:4:4]
Buy currently uses Select Automation shop pricing and checkout.
Filter regulator MS12-LFR
• All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors.
• The right solution for very task. In sizes 4, 6, 9 and 12.
• Grid dimension 124 mm
• MS12-LFR: piloted diaphragm regulator without internal air consumption
• Good control characteristics with minimal pressure hysteresis and primary pressure compensation
• Good particle and condensate separation
• With or without secondary exhausting
• High flow rate
• Lockable rotary knob
• Return flow option for exhausting from output 2 to input 1 already integrated
