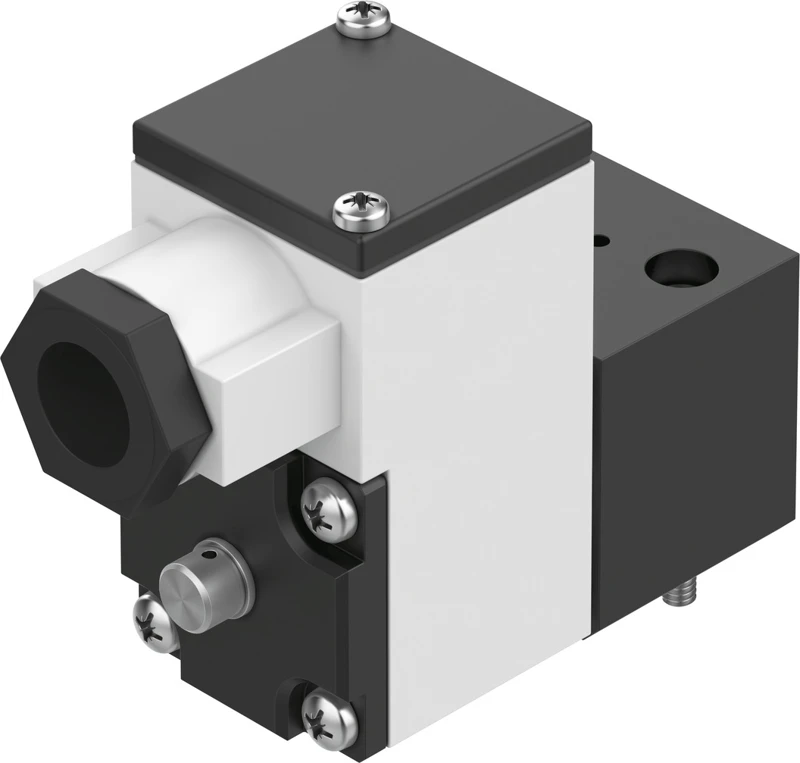

Pilot valve, MGXIAH-3/2-0.8-24DC-EX
SKU: 535614
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves VSNC
• Accessories, Pilot valves with CNOMO port pattern, to ISO 15218
• Valve function 3/2-way, closed, monostable
• Type of actuation Electric
• Operating pressure -0.09 MPa ... 0.8 MPa
• Operating pressure -0.9 bar ... 8 bar
• Operating pressure -13.05 psi ... 116 psi
• Design On/off valve
• Type of reset Mechanical spring
• CE mark (see declaration of conformity) To EU Explosion Protection Directive (ATEX)
Buy currently uses Select Automation shop pricing and checkout.
Standards-based valve CNOMO
• Standards-based valves ISO 15218 (CNOMO).
• CNOMO connection pattern, to ISO 15218
• Detenting or non-detenting manual override
• Variants to EU Explosion Protection Directive (ATEX)
