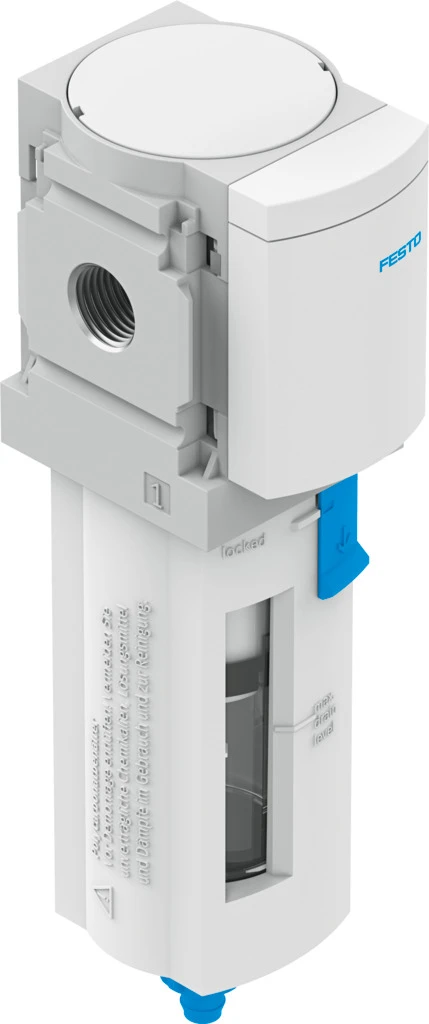

Micro filter, MS4-LFM-1/4-AUV

Specifications • Fine and micro filters MS4/MS6-LFM, MS series • Series MS • Size 4 • Design Fibre filter • Grade of filtration 0.01 µm • Condensate drain Fully automatic, Manual, non-detenting • Symbol 00991520 • Operating pressure 2 bar ... 12 bar • Operating medium Compressed air to ISO 8573-1:2010 [6:4:4] Inert gases • Air purity class at output Compressed air to ISO 8573-1:2010 [3:4:2] • Max. standard flow rate for clean air class 360 l/min • Min. standard flow rate for clean air class 54 l/min • Pneumatic connection, port 1 G1/4 • Ambient temperature -10 °C - 60 °C
