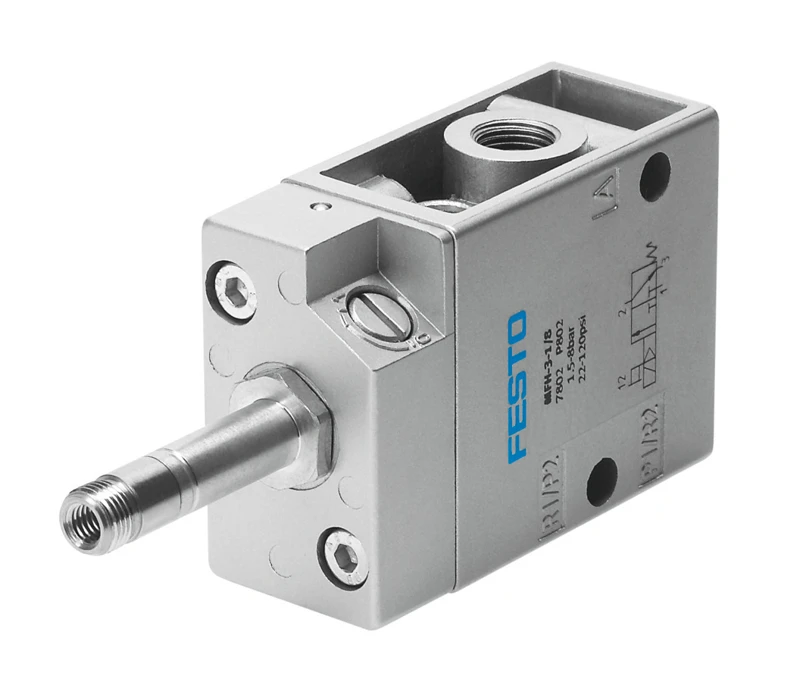

Solenoid valve, MFH3-1/8-EX

Specifications • Solenoid valves MFH, Tiger Classic • Valve function 3/2-way, closed, monostable • Type of actuation Electric • Construction width 26 mm • Standard nominal flow rate (standardised to DIN 1343) 500 l/min • Pneumatic working port G1/8 • Operating voltage Via solenoid coil, must be ordered separately • Operating pressure 0.15 MPa ... 0.8 MPa • Operating pressure 1.5 bar ... 8 bar • Design Poppet seat • Type of reset Mechanical spring • CE mark To EU Explosion Protection Directive (ATEX)
