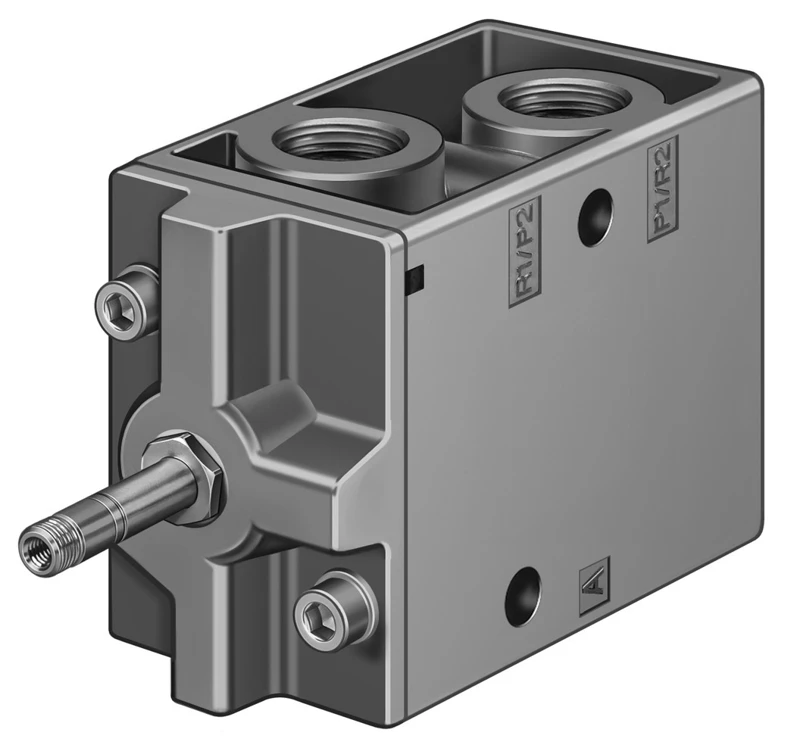

Solenoid valve, MFH3-1/2-S-EX

Specifications • Solenoid valves MFH, Tiger Classic • Valve function 3/2-way, closed, monostable • Type of actuation Electric • Construction width 52 mm • Standard nominal flow rate (standardised to DIN 1343) 3700 l/min • Pneumatic working port G1/2 • Operating voltage Via solenoid coil, must be ordered separately • Operating pressure -0.095 MPa ... 1 MPa • Operating pressure -0.95 bar ... 10 bar • Design Poppet seat • Type of reset Mechanical spring • CE mark To EU Explosion Protection Directive (ATEX)
