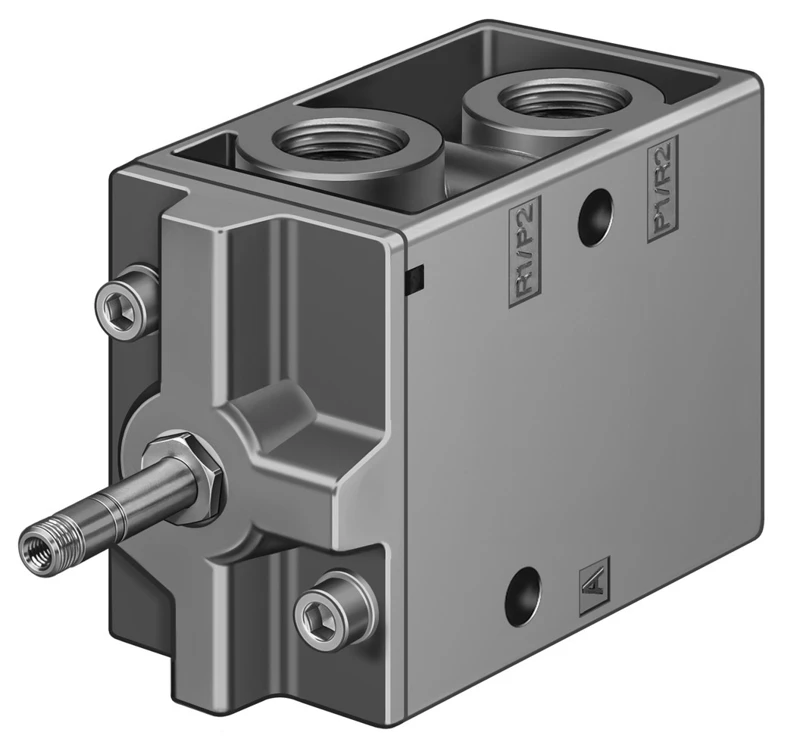

Solenoid valve, MOFH-3-1/2-EX

Specifications • Solenoid valves MFH, Tiger Classic • Valve function 3/2 open, single solenoid • Type of actuation Electric • Construction width 52 mm • Standard nominal flow rate (standardised to DIN 1343) 3700 l/min • Pneumatic working port G1/2 • Operating voltage Via solenoid coil, must be ordered separately • Operating pressure 0.15 MPa ... 0.8 MPa • Operating pressure 1.5 bar ... 8 bar • Design Poppet seat • Type of reset Mechanical spring • CE mark To EU Explosion Protection Directive (ATEX)
