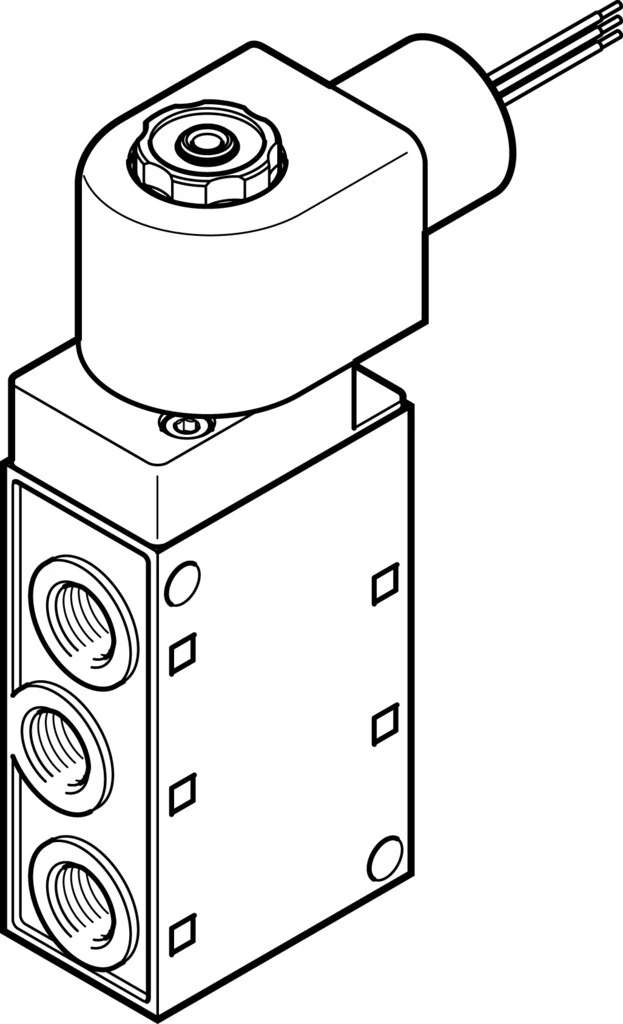

Solenoid valve, MFH-5-1/4-S-EX

Specifications • Solenoid valves MFH, Tiger Classic • Valve function 5/2-way, monostable • Type of actuation Electric • Construction width 30.5 mm • Standard nominal flow rate (standardised to DIN 1343) 1000 l/min • Pneumatic working port G1/4 • Operating voltage Via solenoid coil, must be ordered separately • Operating pressure 0 MPa ... 0.8 MPa • Operating pressure 0 bar ... 8 bar • Design Poppet seat • Type of reset Mechanical spring • CE mark To EU Explosion Protection Directive (ATEX)
