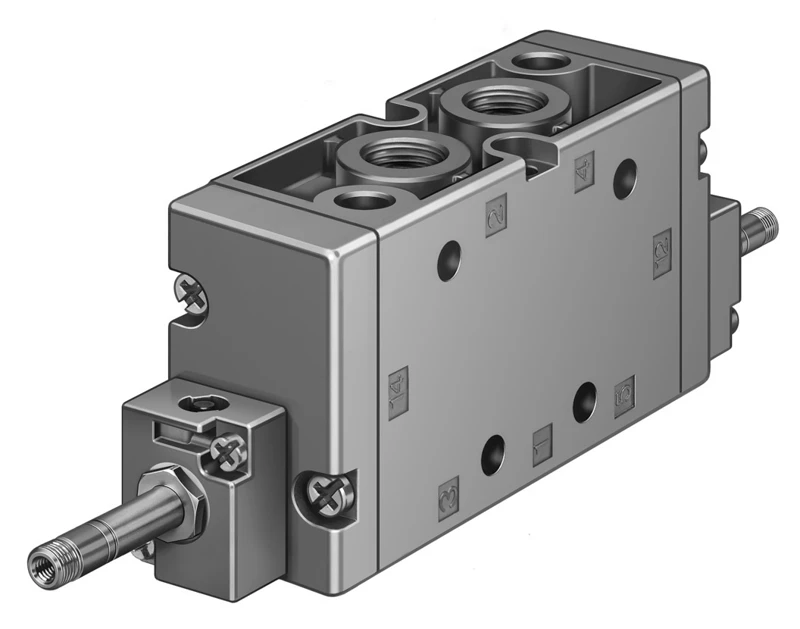

Solenoid valve, JMFH-5-3/8-B-EX
SKU: 535932
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves JMFH-B, Tiger 2000
• Valve function 5/2 double solenoid
• Type of actuation Electric
• Construction width 40 mm
• Standard nominal flow rate (standardised to DIN 1343) 2000 l/min
• Pneumatic working port G3/8
• Operating pressure 0.2 MPa ... 0.8 MPa
• Operating pressure 2 bar ... 8 bar
• Design Piston gate valve
• Type of reset Mechanical spring
• CE mark To EU Explosion Protection Directive (ATEX)
Buy currently uses Select Automation shop pricing and checkout.
Tiger valve 2000
• Solenoid valve in a functional, timeless design with closed housing front.
• Sturdy and reliable
• Wide range of voltages thanks to individual coils
• Principle with armature tube
• To EU Explosion Protection Directive (ATEX)
