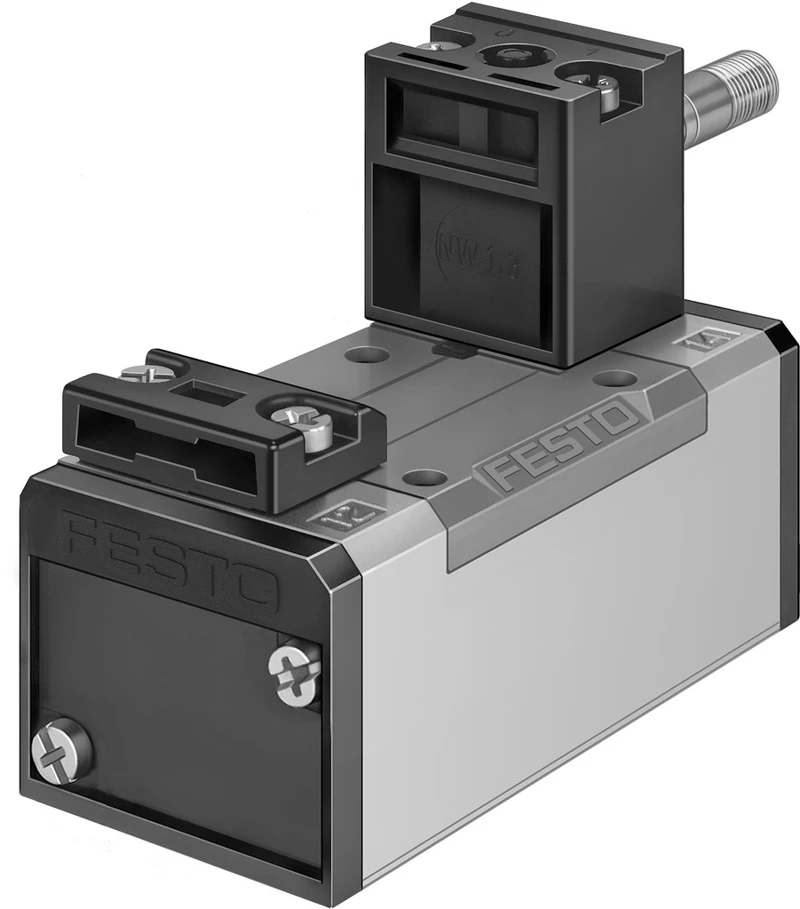

Solenoid valve, MFH-5/2-D-2-C-EX

Specifications • Standards-based valves to ISO 5599-1, solenoid coil MSF • Valve function 5/2-way, monostable • Type of actuation Electric • Construction width 54 mm • Standard nominal flow rate (standardised to DIN 1343) 2300 l/min • Pneumatic working port Sub-base size 2 to ISO 5599-1, G3/8 • Operating voltage Via solenoid coil, must be ordered separately • Operating pressure 0.2 MPa ... 1 MPa • Operating pressure 2 bar ... 10 bar • Design Piston gate valve • Type of reset Pneumatic spring
