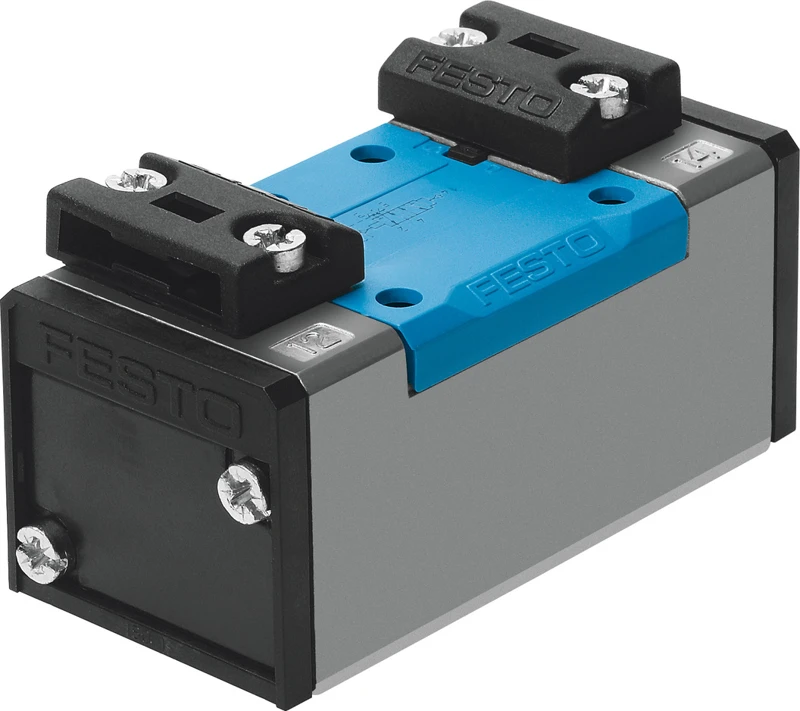

Pneumatic valve, VL-5/2-D-3-C-EX

Specifications • Standards-based valves to ISO 5599-1, pneumatic valves • Valve function 5/2-way, monostable • Type of actuation Pneumatic • Construction width 65 mm • Standard nominal flow rate (standardised to DIN 1343) 4500 l/min • Pneumatic working port Sub-base size 3 to ISO 5599-1, G1/2 • Operating pressure 0.2 MPa ... 1.6 MPa • Operating pressure 2 bar ... 16 bar • Design Piston gate valve • Type of reset Pneumatic spring
