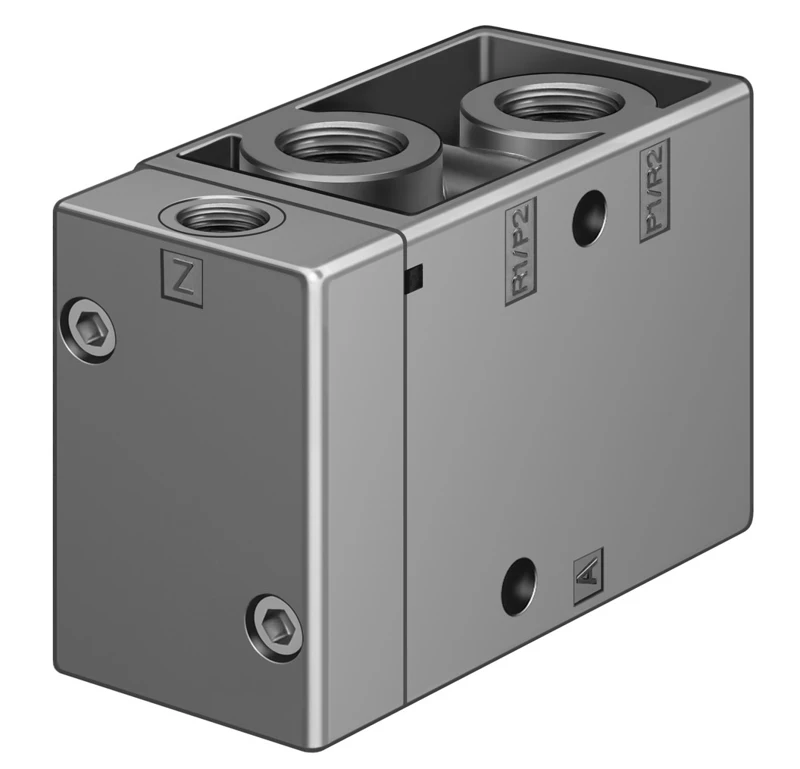

Pneumatic valve, VL/O-3-1/4-EX

Specifications • Pneumatic valves VL/O, Tiger Classic • Valve function 3/2-way, monostable, open/closed • Type of actuation Pneumatic • Construction width 30.5 mm • Standard nominal flow rate (standardised to DIN 1343) 800 l/min • Pneumatic working port G1/4 • Operating pressure -0.095 MPa ... 1 MPa • Operating pressure -0.95 bar ... 10 bar • Design Poppet seat • Type of reset Mechanical spring • Degree of protection IP65 • CE mark To EU Explosion Protection Directive (ATEX)
