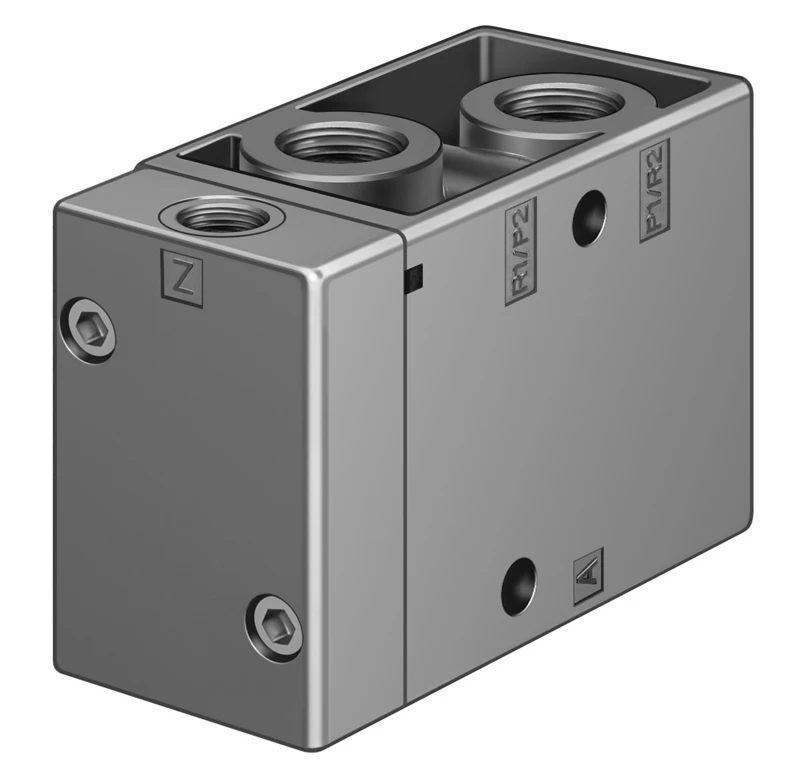

Pneumatic valve, VL/O-3-1/2-EX
SKU: 536030
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pneumatic valves VL/O, Tiger Classic
• Valve function 3/2-way, monostable, open/closed
• Type of actuation Pneumatic
• Construction width 52 mm
• Standard nominal flow rate (standardised to DIN 1343) 3700 l/min
• Pneumatic working port G1/2
• Operating pressure -0.095 MPa ... 1 MPa
• Operating pressure -0.95 bar ... 10 bar
• Design Poppet seat
• Type of reset Mechanical spring
• CE mark To EU Explosion Protection Directive (ATEX)
Buy currently uses Select Automation shop pricing and checkout.
Tiger Classic valve
• Sturdy and reliable
• Poppet valve
• All-metal version
• Principle with armature tube
• Variants to EU Explosion Protection Directive (ATEX)
