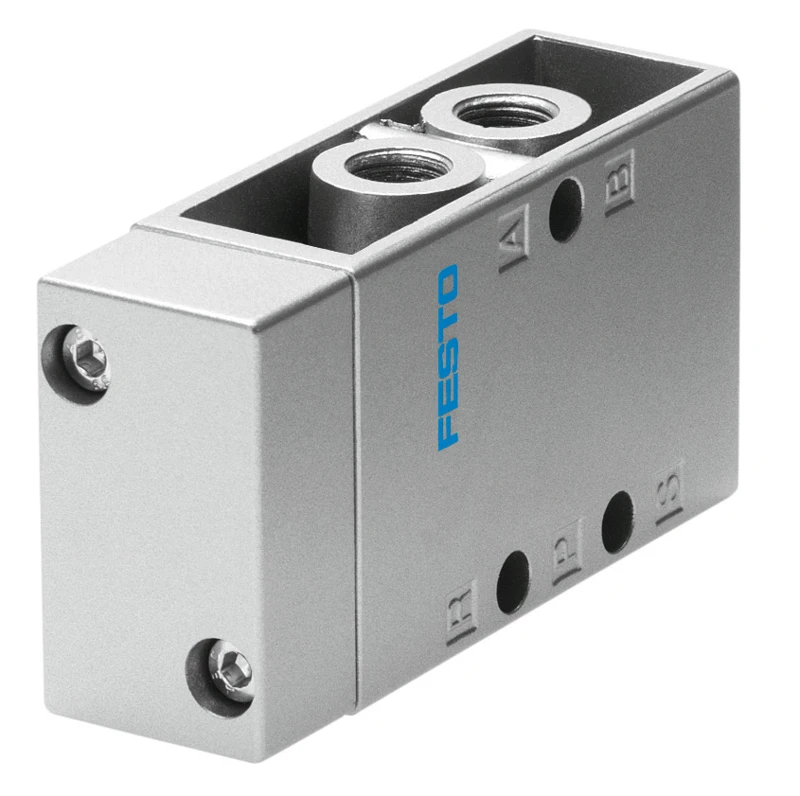

Pneumatic valve, VL-5-1/4-EX

Specifications • Pneumatic valves VL, Tiger Classic • Valve function 5/2-way, monostable • Type of actuation Pneumatic • Construction width 30.5 mm • Standard nominal flow rate (standardised to DIN 1343) 800 l/min • Pneumatic working port G1/4 • Operating pressure 0 MPa ... 0.8 MPa • Operating pressure 0 bar ... 8 bar • Design Poppet seat • Type of reset Mechanical spring • Degree of protection IP65 • CE mark To EU Explosion Protection Directive (ATEX)
