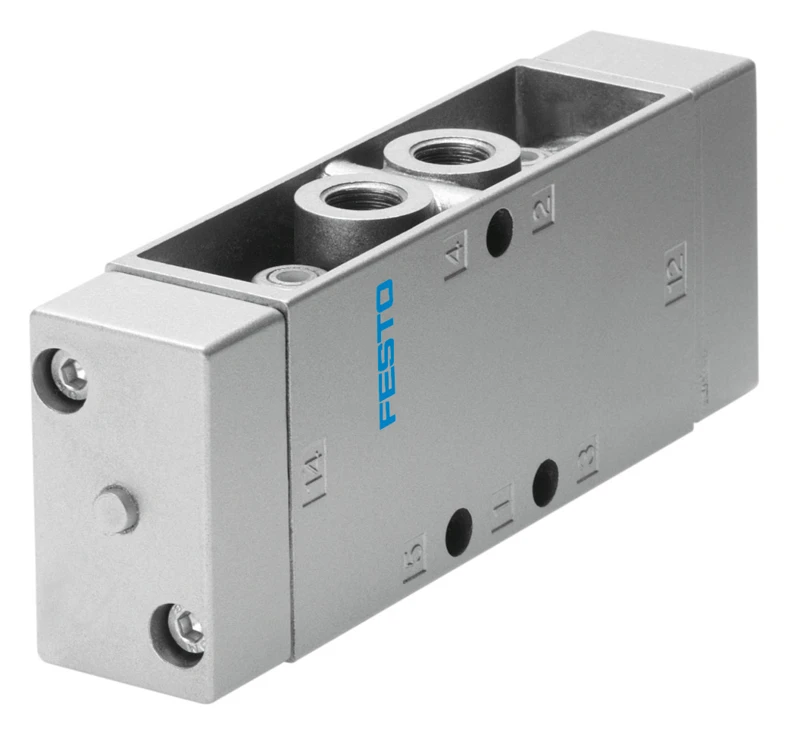

Pneumatic valve, JH-5-1/4-EX
SKU: 536036
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pneumatic valves JH, Tiger Classic
• Valve function 5/2 double solenoid
• Type of actuation Pneumatic
• Construction width 30.5 mm
• Standard nominal flow rate (standardised to DIN 1343) 1100 l/min
• Pneumatic working port G1/4
• Operating pressure 0 MPa ... 0.8 MPa
• Operating pressure 0 bar ... 8 bar
• Design Poppet seat
• Degree of protection IP65
• CE mark To EU Explosion Protection Directive (ATEX)
Buy currently uses Select Automation shop pricing and checkout.
Tiger Classic valve
• Sturdy and reliable
• Poppet valve
• All-metal version
• Principle with armature tube
• Variants to EU Explosion Protection Directive (ATEX)
