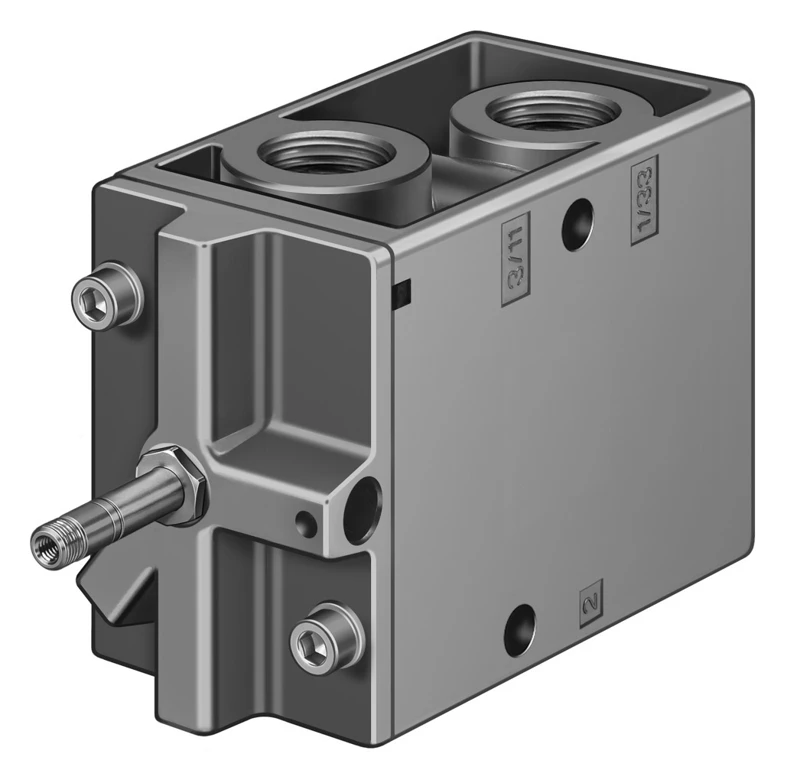

Solenoid valve, MOFH-3-3/4-EX

Specifications • Solenoid valves MFH, Tiger Classic • Valve function 3/2 open, single solenoid • Type of actuation Electric • Construction width 68 mm • Standard nominal flow rate (standardised to DIN 1343) 7500 l/min • Pneumatic working port G3/4 • Operating voltage Via solenoid coil, must be ordered separately • Operating pressure 0.2 MPa ... 0.8 MPa • Operating pressure 2 bar ... 8 bar • Design Poppet seat • Type of reset Mechanical spring • CE mark To EU Explosion Protection Directive (ATEX)
