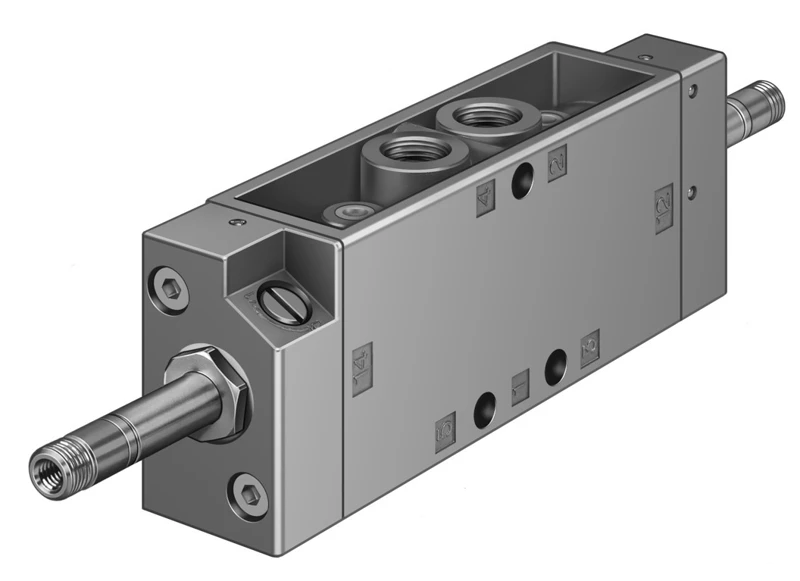

Solenoid valve, JMFDH-5-1/8-EX

Specifications • Solenoid valves JMFH, Tiger Classic • Valve function 5/2-way, bistable, dominant • Type of actuation Electric • Construction width 26 mm • Standard nominal flow rate (standardised to DIN 1343) 600 l/min • Pneumatic working port G1/8 • Operating voltage Via solenoid coil, must be ordered separately • Operating pressure 0.25 MPa ... 0.8 MPa • Operating pressure 2.5 bar ... 8 bar • Design Poppet seat • CE mark To EU Explosion Protection Directive (ATEX)
