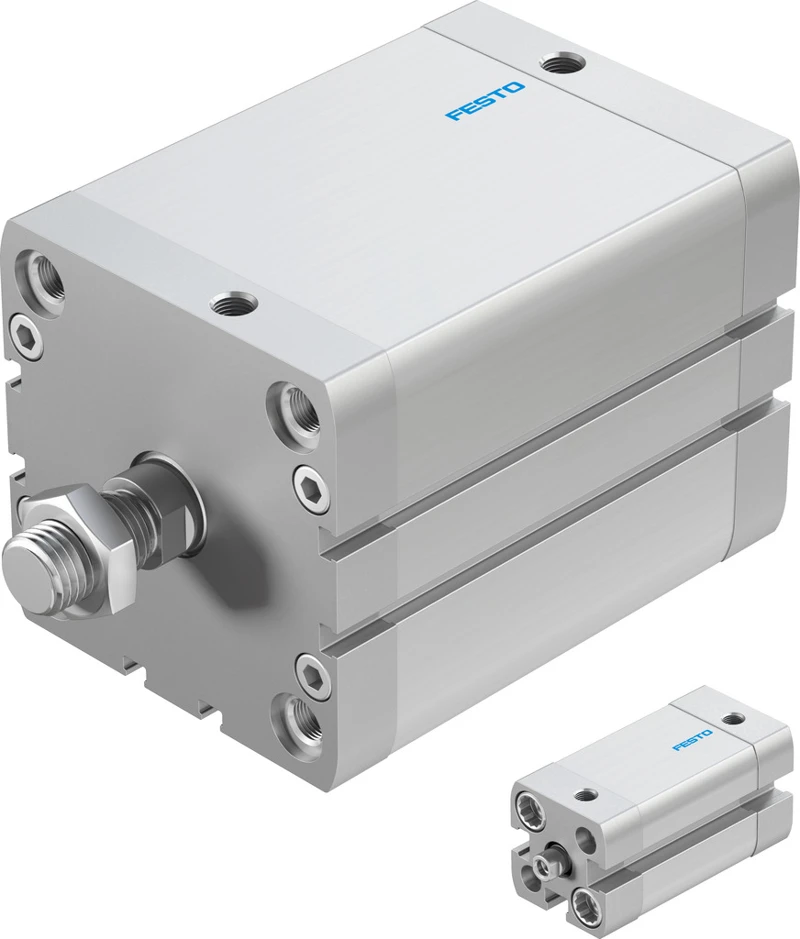

Compact cylinder, ADN-32- -

Specifications • Compact cylinders ADN, to ISO 21287 • Stroke 1 mm ... 400 mm • Piston diameter 32 mm • Cushioning Elastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning • Mounting position optional • Conforms to standard ISO 21287 • Design Piston, Piston rod, Profile barrel • Position detection Via proximity switch • Variants EX protection approval (ATEX), Metals with copper, zinc or nickel as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. Improved running performance, Extended male piston rod thread, Custom thread on the piston rod, Extended piston rod, With protection against rotation, High corrosion protection, Dust protection, Uniform, slow movement, Low friction, Through piston rod, Through, hollow piston rod, Heat-resistant seals max. 120°C, Laser etched rating plate, Temperature range -40 to 80°C, Piston rod at one end
