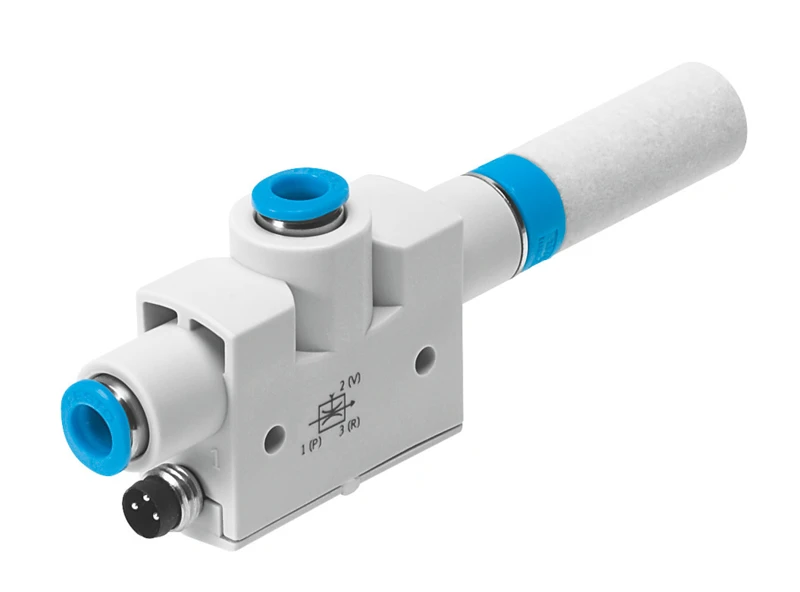

Vacuum generator, VN-07-H-T4-PQ2-VQ2-O2-P
SKU: 536801
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Vacuum generators VN-P, with integrated vacuum switch
• Nominal size, Laval nozzle 0.7 mm
• Grid dimension 16 mm
• Silencer design Open
• Mounting position optional
• Ejector characteristic High vacuum, Standard
• Integrated function Pressure sensor, Open silencer
• Design T-shape
• Short circuit current rating Pulsed
• Measured variable Relative pressure
• Measuring principle Piezoresistive
• Measurement method Relative
• Switching element function N/O contact
• Max. vacuum 92 %
• Max. suction flow rate against atmosphere 16.2 l/min
Buy currently uses Select Automation shop pricing and checkout.
Vacuum generator, pneumatic VN
• Can be used directly in the work space
• Available as straight type (in-line: vacuum port in line with the supply port) or T-shape (standard: vacuum port at 90° to the supply port)
• Compact and cost-effective
• Maintenance-free operation and reduced noise level through an integrated, open silencer
• Variants recommended for production systems for manufacturing lithium-ion batteries
