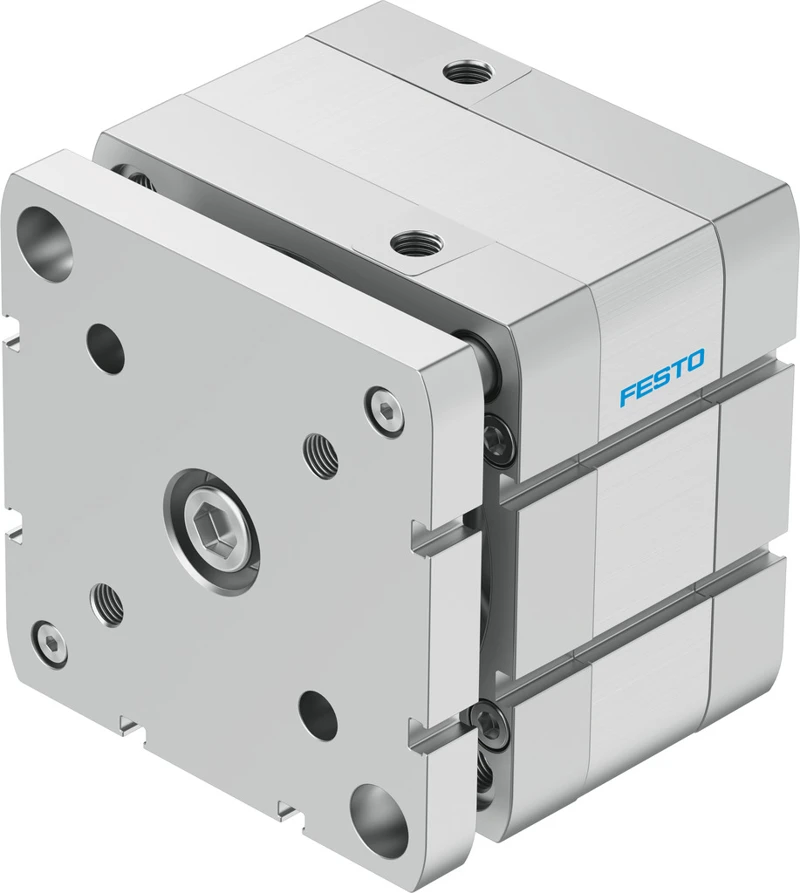

Compact cylinder, ADNGF-100- -
SKU: 537132
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Compact cylinders ADNGF, standard hole pattern
• Stroke 5 mm ... 400 mm
• Piston diameter 100 mm
• Based on standard ISO 21287
• Cushioning Elastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning
• Mounting position optional
• Design Piston, Piston rod, Profile barrel
• Position detection Via proximity switch
• Variants: EX protection approval (ATEX), Through piston rod, Heat-resistant seals max. 120°C, Laser etched rating plate
Buy currently uses Select Automation shop pricing and checkout.
Compact cylinder, metric ADNGF
• Cylinder with standard hole pattern, guide rods and yoke plate with fixed or self-adjusting cushioning.
• ISO 21287
• Piston rod secured against rotation by a guide rod and yoke plate
• Plain bearing
• Optionally with through piston rod
• Higher load capacity thanks to guide rod and yoke plate
• For position sensing
