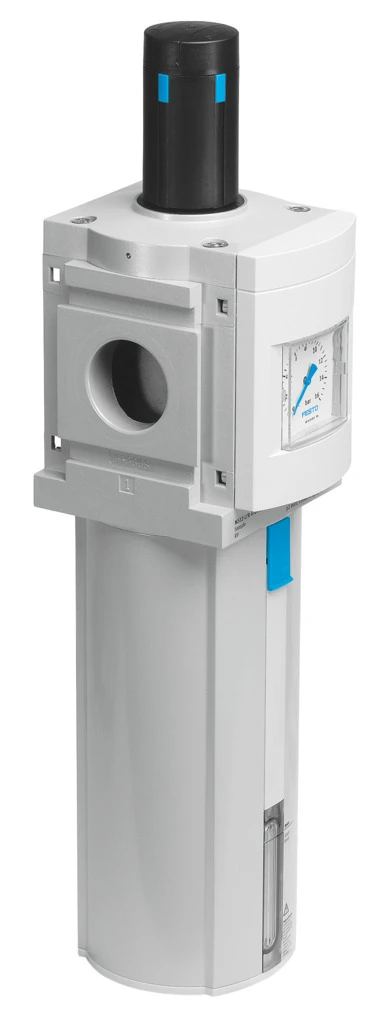

Filter regulator, MS12-LFR-G-D7-CUV-LD-AS
SKU: 537150
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Filter regulators MS12-LFR, MS series
• Size 12
• Series MS
• Actuator lock Rotary knob with detent can be closed with accessories
• Mounting position Vertical +/-5°
• Grade of filtration 5 µm
• Condensate drain Fully automatic, Manual, non-detenting
• Design Filter regulator with pressure gauge, Sintered filter with centrifugal separator, With condensate drain, With secondary exhausting, Modular, Piloted diaphragm regulator
• Max. condensate volume 400 ml
• Controller function Output pressure constant, Via primary pressure compensation, With secondary venting, With return flow function
• Bowl guard Integrated as metal bowl
• Degree of condensate separation >75 %
• Pneumatic connection, port 1 Internal
• Standard nominal flow rate (standardised to DIN 1343) 11000 l/min - 14000 l/min
• Pressure regulation range 0.5 bar - 12 bar
Buy currently uses Select Automation shop pricing and checkout.
Filter regulator MS12-LFR
• All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors.
• The right solution for very task. In sizes 4, 6, 9 and 12.
• Grid dimension 124 mm
• MS12-LFR: piloted diaphragm regulator without internal air consumption
• Good control characteristics with minimal pressure hysteresis and primary pressure compensation
• Good particle and condensate separation
• With or without secondary exhausting
• High flow rate
• Lockable rotary knob
• Return flow option for exhausting from output 2 to input 1 already integrated
