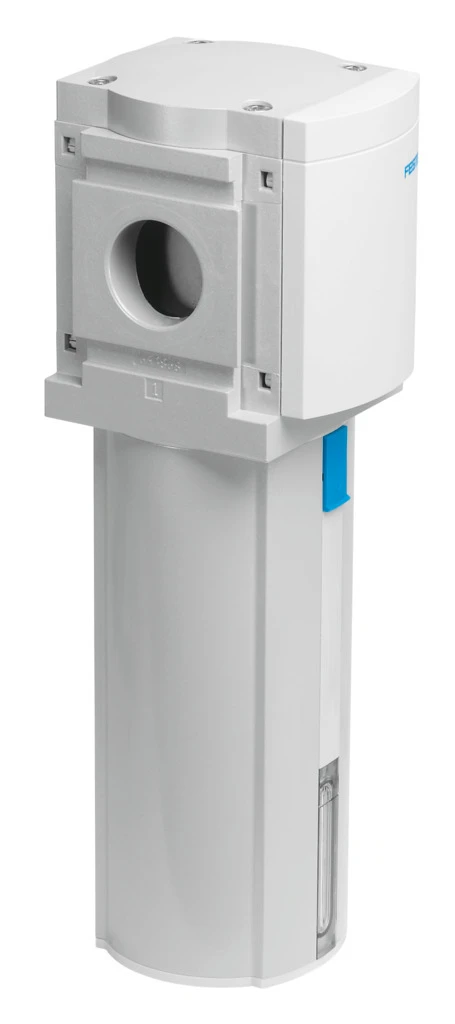

Filter, MS12-LF-G-CUV
SKU: 537152
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Filters MS12-LF, MS series
• Size 12
• Series MS
• Mounting position Vertical +/-5°
• Grade of filtration 5 µm
• Condensate drain Fully automatic, Manual, non-detenting
• Design Sintered filter with centrifugal separator
• Bowl guard Integrated as metal bowl
• Degree of condensate separation >75 %
• Symbol 00991519
• Operating pressure 2 bar ... 12 bar
• Standard nominal flow rate (standardised to DIN 1343) 11500 l/min ... 14000 l/min
• Operating medium Compressed air to ISO 8573-1:2010 [7:9:-] Inert gases
• Pneumatic connection, port 1 Internal
• Ambient temperature 5 °C - 60 °C
Buy currently uses Select Automation shop pricing and checkout.
Filter MS12-LF
• All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors.
• The right solution for very task.
• In sizes 4, 6, 9 and 12.
• Grid dimension 124 mm
• Good particle and condensate separation
• High flow rate performance with minimal pressure drop
• Available with manual, semi-automatic, fully automatic or fully automatic, electrically actuated condensate drain
