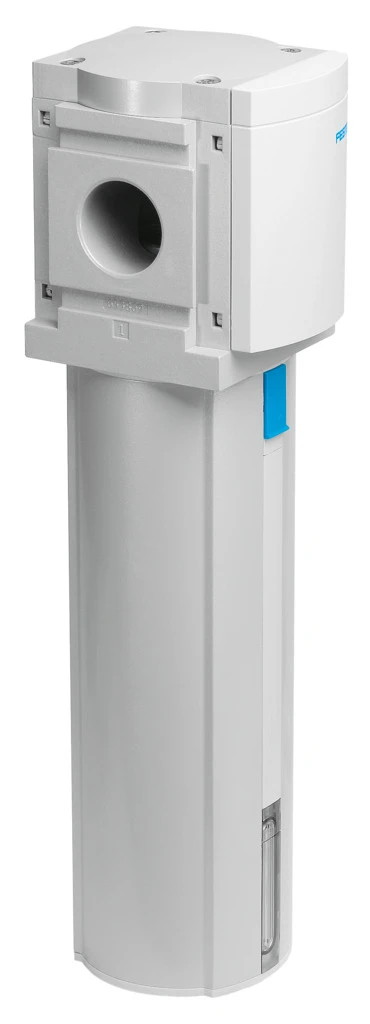

Micro filter, MS12-LFM-G-AUV
SKU: 537154
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Fine and micro filters MS12-LFM, MS series
• Series MS
• Size 12
• Design Fibre filter
• Grade of filtration 0.01 µm
• Condensate drain Fully automatic, Manual, non-detenting
• Symbol 00991519
• Operating pressure 2 bar ... 12 bar
• Operating medium Compressed air to ISO 8573-1:2010 [6:8:4] Inert gases
• Note on operating and pilot medium Ester oil < 0.1 mg/m³, to ISO 8573-1:2010 [-:-:2]
• Air purity class at output Compressed air to ISO 8573-1:2010 [1:7:2]
• Ambient temperature 6 °C - 60 °C
Buy currently uses Select Automation shop pricing and checkout.
Micro filter MS12-LFM-A
• All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors.
• The right solution for very task.
• In sizes 4, 6, 9 and 12.
• Grid dimension 124 mm
• High-efficiency filter for exceptionally clean compressed air
• Removing oil aerosols from compressed air
• Optionally with differential pressure indicator for indication of contamination
• Available with electronic filter contamination indicator
