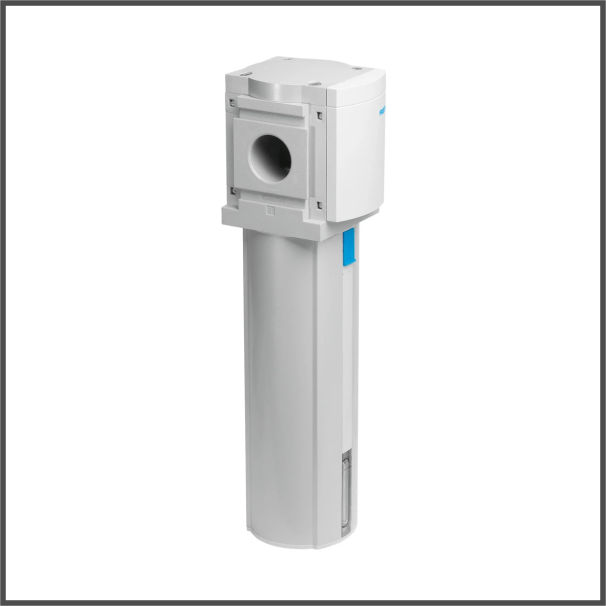

Activated carbon filter, MS12-LFX-G-U
SKU: 537155
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Activated carbon filters MS12-LFX, MS series
• Size 12
• Series MS
• Mounting position Vertical +/-5°
• Condensate drain Manually rotating
• Design Fibre filter
• Bowl guard Integrated as metal bowl
• Symbol 00991519
• Operating pressure 0 bar ... 20 bar
• Operating medium Compressed air to ISO 8573-1:2010 [1:4:2] Inert gases
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Storage temperature -10 °C ... 60 °C
• Air purity class at output Compressed air according to ISO 8573-1:2010 [1:4:1]
• Media temperature 5 °C ... 30 °C
Buy currently uses Select Automation shop pricing and checkout.
Activated carbon filter MS12-LFX
• All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors.
• The right solution for very task.
• In sizes 4, 6, 9 and 12.
• Grid dimension 124 mm
• Removal of gaseous oil particles from compressed air using activated carbon
• Air quality class at the output [1.4.1] to ISO 8573-1
• Eliminates odours and vapours
• Residual oil content = 0.003 mg/m³
